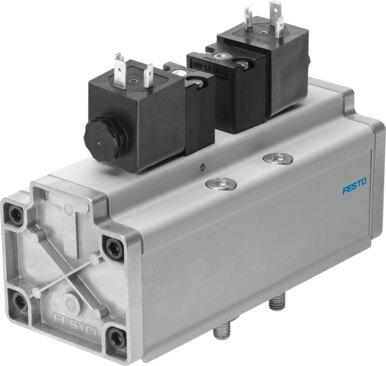

Reference imageConfirm configuration by manufacturer part number.
Festo
12458
Air solenoid valve JMDH-5/2-3/4-D-4-24DC
The Festo 12458 is a 5/2-way bistable industrial component featuring a piloted piston gate valve design with soft seals and a 76 mm width. Operating on 24V DC within a pressure range of 2 bar to 16 bar, this unit delivers a normal nominal flow rate of 6000 l/min through ISO 5599-1 size 4 sub-base ports or G3/4 connections. It incorporates an internal pilot air supply, an 18 mm nominal width, an adjustable exhaust air function, non-detenting manual override, and an IP65 degree of protection conforming to ISO 5599-1 standards for any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 12458
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 12458.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 76 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 6000 l/min
- Pneumatic working port
- Sub-base, size 4 as per ISO 5599-1 | G3/4
- Operating voltage
- 24V DC
- Operating pressure
- 2 bar...16 bar
- Structural design
- Piston gate valve
- Degree of protection
- IP65
- Nominal width
- 18 mm
- Width dimension
- 82 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Non-detenting
- ISO code
- 455
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Changeover time
- 40 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 4300 µs
- Max. negative test pulse on 1 signal
- 2100 µs
- Coil characteristics
- 24 V DC: 6.8 W | 48 V AC: 50/60 Hz, initial power 14.5 VA, holding power 9.9 VA
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
