Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

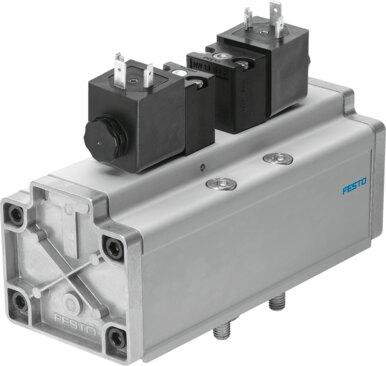

Reference imageConfirm configuration by manufacturer part number.
Festo
12459
Air solenoid valve MDH-5/3G-3/4-D-4-24DC
The Festo 12459 is an electrically actuated 5/3-way closed industrial component featuring a piston gate valve structural design and a 76 mm width with an 18 mm nominal width. This piloted unit operates at a 24V DC operating voltage across a 3 bar to 16 bar operating pressure range, delivering a normal nominal flow rate of 4800 l/min through an ISO 5599-1 size 4 sub-base or G3/4 pneumatic working port. Built with an IP65 degree of protection, soft sealing principle, mechanical spring reset method, internal pilot air supply, and adjustable exhaust air function, the device conforms to ISO 5599-1 standards and includes a non-detenting manual override for any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 12459
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 12459.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Width
- 76 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 4800 l/min
- Pneumatic working port
- Sub-base, size 4 as per ISO 5599-1 | G3/4
- Operating voltage
- 24V DC
- Operating pressure
- 3 bar...16 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Nominal width
- 18 mm
- Width dimension
- 82 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Non-detenting
- ISO code
- 456
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Switching time off
- 290 ms
- On switching time
- 85 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 4300 µs
- Max. negative test pulse on 1 signal
- 2100 µs
- Coil characteristics
- 24 V DC: 6.8 W | 48 V AC: 50/60 Hz, initial power 14.5 VA, holding power 9.9 VA
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 12459. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
