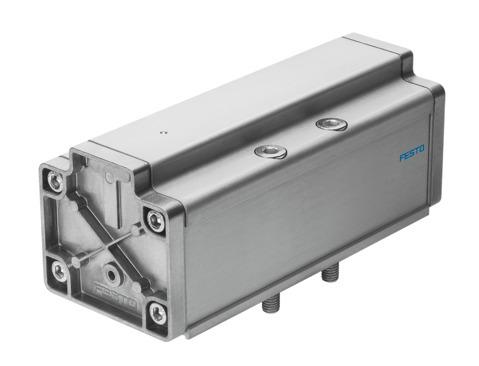

Reference imageConfirm configuration by manufacturer part number.
Festo
12461
Pneumatic valve VL-5/2-3/4-D-4
The Festo part number 12461 is a 5/2-way monostable industrial component featuring a directly controlled piston gate valve structure and a soft sealing principle. This pneumatic unit provides a normal nominal flow rate of 6000 l/min, an operating pressure ranging from -0.9 bar to 16 bar, and a pilot pressure of 3 bar to 16 bar through a size 4 ISO 5599-1 sub-base or G3/4 pneumatic working port. Built with a positive overlap lap, a mechanical spring reset method, and an adjustable exhaust air function, the device conforms to the ISO 5599-1 standard with an ISO code of 404 and accommodates any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 12461
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 12461.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Pneumatic
- Width
- 76 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 6000 l/min
- Pneumatic working port
- Sub-base, size 4 as per ISO 5599-1 | G3/4
- Operating pressure
- -0.9 bar...16 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Nominal width
- 18 mm
- Width dimension
- 82 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- None
- ISO code
- 404
- Type of control
- directly
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure
- 3 bar...16 bar
- Switching time off
- 90 ms
- On switching time
- 25 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Noise level
- 85 dB(A)
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 1800 g
- Type of mounting
- On sub-base
