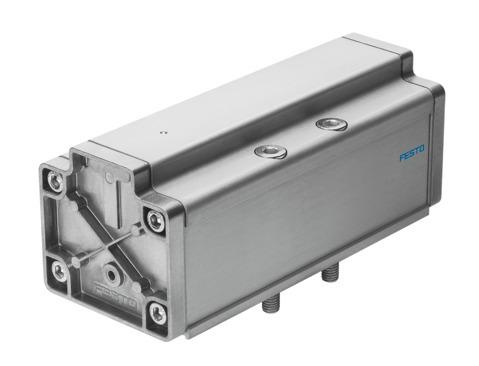

Reference imageConfirm configuration by manufacturer part number.
Festo
12462
Pneumatic valve J-5/2-3/4-D-4
The Festo 12462 is a 5/2-way bistable pneumatic industrial component featuring a piston gate valve structural design and a direct control type with a positive overlap lap. It delivers a normal nominal flow rate of 6000 l/min through a sub-base size 4 ISO 5599-1 or G3/4 pneumatic working port, operating within a pressure range of -0.9 bar to 16 bar and a pilot pressure of 2 bar to 16 bar. Complying with ISO 5599-1 standards and ISO code 401, this reversible unit has an 18 mm nominal width, an adjustable exhaust air function, a soft sealing principle, a 20 ms changeover time, and a mounting position of any. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 12462
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 12462.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Pneumatic
- Width
- 76 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 6000 l/min
- Pneumatic working port
- Sub-base, size 4 as per ISO 5599-1 | G3/4
- Operating pressure
- -0.9 bar...16 bar
- Structural design
- Piston gate valve
- Nominal width
- 18 mm
- Width dimension
- 82 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- None
- ISO code
- 401
- Type of control
- directly
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure
- 2 bar...16 bar
- Changeover time
- 20 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Noise level
- 85 dB(A)
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 1800 g
- Type of mounting
- On sub-base | With through-hole and screw
- Pilot air port 12
- Sub-base, size 4 as per ISO 5599-1
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 12462. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
