Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

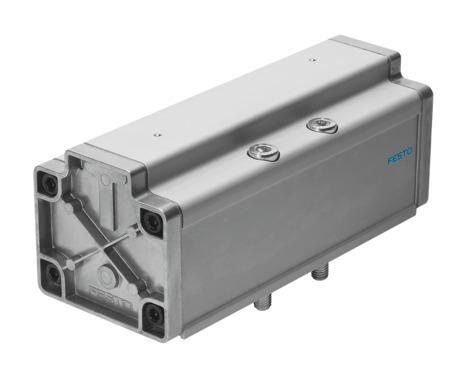

Reference imageConfirm configuration by manufacturer part number.
Festo
12463
Pneumatic valve VL-5/3G-3/4-D-4
The Festo part number 12463 is a 76 mm wide pneumatic industrial component featuring a 5/3-way closed valve function and a piston gate valve structural design with a soft sealing principle. This directly controlled unit delivers a normal nominal flow rate of 4800 l/min through ISO 5599-1 size 4 sub-base working ports and operates within a pressure range of -0.9 bar to 16 bar. Constructed with an 18 mm nominal width, an adjustable exhaust air function, a mechanical spring reset method, and a positive overlap lap, it conforms to ISO 5599-1 and ISO code 406 standards with a reversible flow direction and any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 12463
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 12463.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Pneumatic
- Width
- 76 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 4800 l/min
- Pneumatic working port
- Sub-base, size 4 as per ISO 5599-1 | G3/4
- Operating pressure
- -0.9 bar...16 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Nominal width
- 18 mm
- Width dimension
- 82 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- None
- ISO code
- 406
- Type of control
- directly
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure
- 3 bar...16 bar
- Switching time off
- 130 ms
- On switching time
- 40 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Noise level
- 85 dB(A)
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 2000 g
- Type of mounting
- On sub-base
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 12463. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
