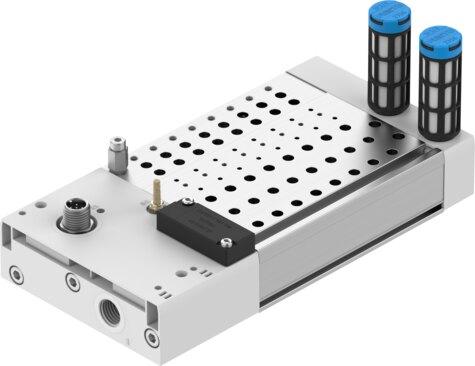

Reference imageConfirm configuration by manufacturer part number.
Festo
1247977
Manifold rail VABM-C8-12E-G14-8-PT-L
The Festo part number 1247977 is a 727 g industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 12 mm and a maximum of 8 valve positions. This unit incorporates G1/4 pneumatic connections for ports 1, 3, and 5, along with a corrosion resistance class of 0 with no corrosion stress, VDMA24364-B1/B2-L LABS conformity, and RoHS compliant materials. Installation requires a maximum tightening torque of 0.6 Nm for valve mounting and 5 Nm for wall mounting, while compliance includes UKCA marking to UK instructions for EMC and RoHS. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1247977
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1247977.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 12 mm
- Max. no. of valve positions
- 8
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque for valve mounting
- 0.6 Nm
- Max. tightening torque for wall mounting
- 5 Nm
- Product weight
- 727 g
- Pneumatic connection 1
- G1/4
- Pneumatic connection 3
- G1/4
- Pneumatic connection 5
- G1/4
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1247977. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
