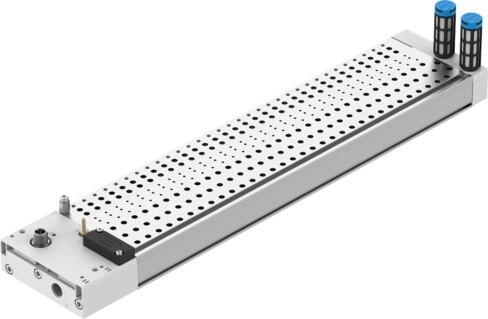

Name: Festo 1247986 Manifold rail VABM-C8-12E-G14-32-PT-L
Brand: Festo

Manifold rail VABM-C8-12E-G14-32-PT-L

The Festo part number 1247986 is an industrial component featuring a width dimension of 12 mm and supporting a maximum of 32 valve positions, with a total product weight of 1982 g. It incorporates G1/4 pneumatic connections for ports 1, 3, and 5, a corrosion resistance class of CRC 0 for no corrosion stress, and LABS conformity to VDMA24364-B1/B2-L. Compliance includes UKCA marking to UK instructions for EMC and RoHS, with maximum tightening torques specified at 0.6 Nm for valve mounting and 5 Nm for wall mounting. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1247986
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1247986.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width dimension: 12 mm
Max. no. of valve positions: 32
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Max. tightening torque for valve mounting: 0.6 Nm
Max. tightening torque for wall mounting: 5 Nm
Product weight: 1982 g
Pneumatic connection 1: G1/4
Pneumatic connection 3: G1/4
Pneumatic connection 5: G1/4

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1247986. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
