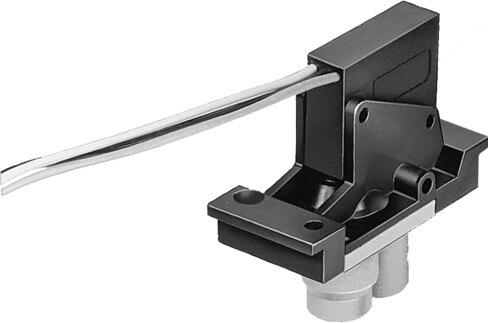

Reference imageConfirm configuration by manufacturer part number.
Festo
12593
PE converter VPE-1/8-SW
The Festo part number 12593 is a pneumatic and electric pressure transducer that measures relative pressure within an operating pressure range of -0.095 MPa to 0 MPa and a maximum overload pressure of 1 bar. This industrial component operates with compressed air according to ISO 8573-1:2010 [7:4:4] within medium and ambient temperatures of 0 °C to 60 °C, featuring a contact-based changeover switch with a fixed hysteresis, a switch-on point of -0.25 bar, and a switch-off point of 0.1 bar. It conforms to standard EN 60947-5-1, carries CE marking as per the EU low voltage directive and UKCA marking to UK instructions for electrical equipment, and supports AC and DC operating voltage ranges of 12 V to 250 V with a minimum load current of 100 mA. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 12593
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 12593.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 60947-5-1
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Measured variable
- Relative pressure
- Method of measurement
- Pneumatic/electric pressure transducer
- Operating pressure
- -0.095 MPa...0 MPa | -0.95 bar...0 bar
- Max. overload pressure
- 1 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Temperature of medium
- 0 °C...60 °C
- Ambient temperature
- 0 °C...60 °C
- Switching output
- Contact-based
- Switching function
- Threshold value with xed hysteresis
- Switching element function
- Changeover switch
- Switch-on point
- -0.25 bar
- Switch-off point
- 0.1 bar
- Max. switching frequency
- 1 Hz
- Minimum load current
- 100 mA
- Operating voltage range AC
- 12 V...250 V
- DC operating voltage range
- 12 V...250 V
- Utilization category for inductive load
- AC-14 | DC-13
- Utilization category for ohmic load
- AC-12 | DC-12
- Electrical connection
- 3 connecting wires
- Electrical connection 1, connection technology
- Open end
- Cable length
- 0.5 m
- Material of cable sheath
- PVC
- Type of mounting
- Alternatively: | On mounting frame 1n
- Mounting position
- Any
