Festo
12595

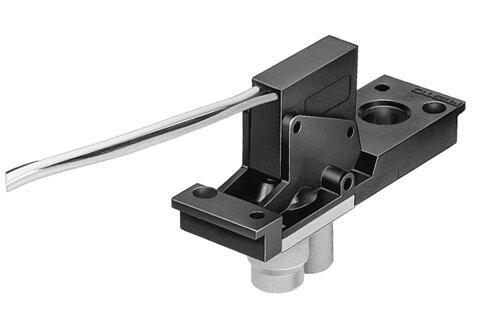

PE converter VPE-1/8-2N-SW
The Festo 12595 industrial component functions as a pneumatic/electric pressure transducer measuring relative pressure within an operating pressure range of -0.095 MPa to 0 MPa and accepting compressed air media conforming to ISO 8573-1:2010 [7:4:4] at temperatures from 0 °C to 60 °C. Operating on AC and DC voltage ranges of 12 V to 250 V with a contact-based switching output featuring a changeover switch element function, this unit provides a fixed hysteresis threshold value with a switch-on point of -0.25 bar, a switch-off point of 0.1 bar, and a maximum switching frequency of 1 Hz under a minimum load current of 100 mA. Built to conform to EN 60947-5-1 standards, the device carries CE marking per the EU low voltage directive and UKCA marking per UK electrical equipment instructions. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 12595
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 12595.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 60947-5-1
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Measured variable
- Relative pressure
- Method of measurement
- Pneumatic/electric pressure transducer
- Operating pressure
- -0.095 MPa...0 MPa | -0.95 bar...0 bar
- Max. overload pressure
- 1 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Temperature of medium
- 0 °C...60 °C
- Ambient temperature
- 0 °C...60 °C
- Switching output
- Contact-based
- Switching function
- Threshold value with xed hysteresis
- Switching element function
- Changeover switch
- Switch-on point
- -0.25 bar
- Switch-off point
- 0.1 bar
- Max. switching frequency
- 1 Hz
- Minimum load current
- 100 mA
- Operating voltage range AC
- 12 V...250 V
- DC operating voltage range
- 12 V...250 V
- Utilization category for inductive load
- AC-14 | DC-13
- Utilization category for ohmic load
- AC-12 | DC-12
- Electrical connection
- 3 connecting wires
- Electrical connection 1, connection technology
- Open end
- Cable length
- 0.5 m
- Material of cable sheath
- PVC
- Type of mounting
- Alternatively: | On mounting frame 2n | With through-hole
- Mounting position
- Any
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 12595. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
