Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

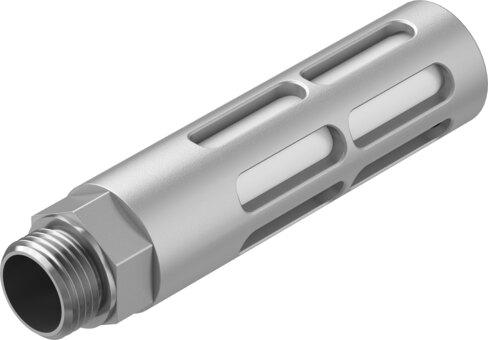

Reference imageConfirm configuration by manufacturer part number.
Festo
12741
Pneumatic muffler U-1/2-B-NPT
The Festo 12741 is an industrial component featuring a 1/2 NPT pneumatic connection, an aluminum housing and screwed plug, and a product weight of 75 g. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] across an operating pressure range of 0 MPa to 1 MPa (0 bar to 10 bar, 0 psi to 145 psi) and an ambient temperature range of -10 °C to 70 °C, supporting lubricated operation and achieving a flow rate of 6500 l/min with respect to the atmosphere at a noise level of 80 dB(A). Featuring any mounting position, a corrosion resistance class (CRC) of 1, and VDMA24364-B1/B2-L LABS conformity, this RoHS compliant part includes a cushioning insert material with protective grounding. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 12741
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 12741.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Operating pressure for entire temperature range
- 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
- Flow rate with respect to atmosphere
- 6500 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Noise level
- 80 dB(A)
- Ambient temperature
- -10 °C...70 °C
- Product weight
- 75 g
- Pneumatic connection
- 1/2 NPT
- Cushioning insert material
- Protective grounding
- Material of screwed plug
- Aluminum
- Note on materials
- RoHS compliant
- Housing material
- Aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 12741. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
