12743

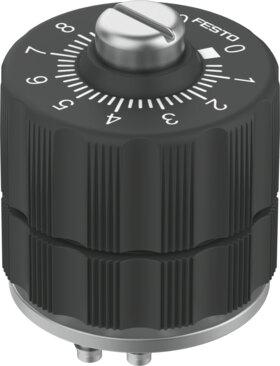

Name: Festo 12743 Precision one-way flow control valve GRP-10-PK-3
Brand: Festo

Precision one-way flow control valve GRP-10-PK-3

Engineered by Festo, the part number 12743 is a manual one-way flow control valve featuring a rotary knob with a scale and front panel mounting capability for installation in any position. This component utilizes PK-3 pneumatic connections for both ports and operates within a pressure range of 0 bar to 8 bar using compressed air conforming to ISO 8573-1:2010 [5:4:3] or inert gases, while excluding oil lubrication operation. The housing is constructed from reinforced polyamide, delivering a standard nominal flow rate of 3.8 l/min in the flow control direction and 95 l/min in the non-return direction under an ambient temperature range of -10 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote for this item.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 12743
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 12743.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: One-way ow control function
Pneumatic connection 1: PK-3
Pneumatic connection 2: PK-3
Actuation type: Manual
Adjusting element: Rotary knob with scale
Type of mounting: Front panel mounting
Standard nominal ow rate in ow control direction: 3.8 l/min
Standard nominal ow rate in non-return direction: 95 l/min
Operating pressure: 0 bar...8 bar
Ambient temperature: -10 °C...50 °C
Housing material: PA-reinforced
Mounting position: Any
Operating pressure from 2 to 1: 0 bar...8 bar
Standard nominal ow rate in ow control direction from 1bar to 0 bar: 1.65 l/min
Standard nominal ow rate in non-return direction from 1 bar to 0 bar: 15 l/min...50 l/min
Standard ow rate in ow control direction 6 -> 0 bar: 5.2 l/min
Standard ow rate in non-return direction at 6 -> 0 bar: 131 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [5:4:3] | Inert gases
Information on operating and pilot media: Operation with oil lubrication not possible
LABS (PWIS) conformity: VDMA24364 Zone III
Temperature of medium: -10 °C...50 °C
Product weight: 48 g
Note on materials: RoHS compliant
Seals material: NBR | PVC
Retainer bracket material: Wrought aluminum alloy

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 12743. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
