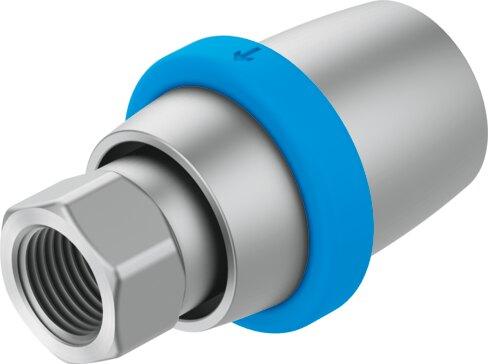

Reference imageConfirm configuration by manufacturer part number.
Festo
1302994
Hand slide valve VBOH-32-G14
The Festo 1302994 is a directly controlled 3/2-way bistable sleeve valve featuring G1/4 pneumatic connections and manual actuation for in-line or screw-in mounting in any position. Constructed with an anodized wrought aluminum alloy housing and a soft sealing principle, this component delivers a nominal width of 8.4 mm and a normal nominal flow rate of 1675 l/min across an operating pressure range of -0.95 bar to 12 bar. It operates with compressed air according to ISO 8573-1:2010 [7:4:4] within an ambient temperature range of -10 °C to 80 °C, supports reversible flow direction, and requires oil lubrication for continued use while offering moderate corrosion resistance (CRC 2). Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1302994
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1302994.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, bistable
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Actuation type
- Manual
- Type of mounting
- In-line installation | Screw-in
- Normal nominal ow rate (normalized to DIN 1343)
- 1675 l/min
- Nominal width
- 8.4 mm
- Operating pressure
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar
- Ambient temperature
- -10 °C...80 °C
- Housing material
- Wrought aluminum alloy, anodized
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Width dimension
- 31 mm
- Application note
- Please only screw in ttings with a cylindrical thread. Installing tapered | threads can damage the housing and cause the sleeve to jam or | malfunction.
- Sealing principle
- Soft
- Mounting position
- Any
- Structural design
- Sleeve valve
- Type of control
- directly
- Flow direction
- Reversible
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -10 °C...80 °C
- Actuating force
- 45 N
- Product weight
- 35 g
- Material of screwed plug
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Seals material
- NBR
