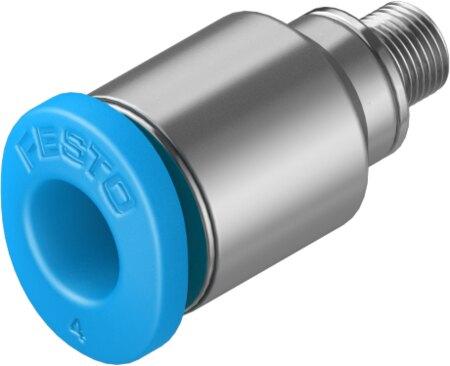

Reference imageConfirm configuration by manufacturer part number.
Festo
130592
Push-in fitting QSM-M3-5/32-I-U-M
The Festo 130592 is a mini industrial component featuring a straight design, a push-pull structural design, and an external thread M3 pneumatic connection 1 alongside a 5/32" outside diameter pneumatic tubing connection 2. Operating within a pressure range of -13.775 psi to 145 psi and ambient temperatures from 0 °C to 60 °C, this unit utilizes a sealing ring on the screwed plug and an internal hex AF1.5 mounting type with a nominal tightening torque of 0.354 ft-lbf. It supports compressed air operating media according to ISO 8573-1:2010 [7:-:-] with lubricated operation possible, maintains a corrosion resistance class of 1, and weighs 0.078 oz with a pack size of 1. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 130592
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 130592.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 0.059 in
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Maritime classication
- See certicate
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Nominal tightening torque
- 0.354 ft-lbf
- Tolerance for nominal tightening torque
- ±55%
- Product weight
- 0.078 oz
- Type of mounting
- Internal hex AF1.5
- Pneumatic connection 1
- External thread M3
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/32"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 130592. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
