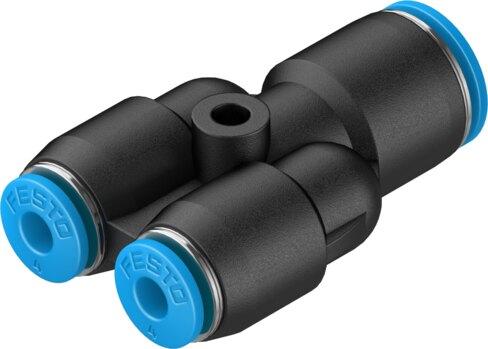

Reference imageConfirm configuration by manufacturer part number.
Festo
130610
Push-in Y-connector QSY-8-4
The Festo part number 130610 is a standard Y-shaped industrial component featuring one supply line and two outlets with a nominal width of 1.7 mm. Utilizing a push-pull structural design, this unit accommodates tubing insertion depths of 14.9 mm for Ø4 tubing and 18.1 mm for Ø8 tubing while supporting any mounting position. It operates within a temperature range of -10 °C to 80 °C, handling compressed air and liquid water up to an operating pressure of 1.4 MPa depending on temperature. Please submit the exact part number 130610, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 130610
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 130610.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 1.7 mm
- Tubing insertion depth
- 14.9 mm | 18.1 mm
- Note on the tubing insertion depth
- Ø4 depth 14.9 mm | Ø8 depth 18.1 mm
- Mounting position
- Any
- Design
- Y-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 13 g
- No. of outlets
- 2
- No. of supply lines
- 1
- Pneumatic connection 1
- for pneumatic tubing outside diameter 8 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 130610. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
