Festo
130637

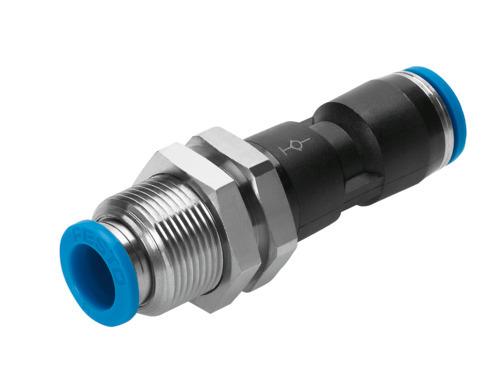

Push-in bulkhead connector QSSK-4
The Festo 130637 is a standard-sized bulkhead industrial component utilizing a push-pull structural design with a nominal width of 1.5 mm and any mounting position. It accommodates multiple approved tubing types including PAN, PEN, PFAN, PLN, PTFEN, and PUN series with specific insertion depths of 12.7 mm and 14.9 mm for Ø4 tubing. The component operates with compressed air as per ISO 8573-1:2010 [7:-:-] or ice-free liquid water, featuring an operating pressure of -0.95 bar to 6 bar across the entire temperature range and up to 14 bar depending on temperature, along with a corrosion resistance class of 1 and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 130637
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 130637.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 1.5 mm
- Approved tubing type
- PAN- | PAN-MF- | PAN-R- | PAN-V0- | PEN- | PFAN- | PLN- | PTFEN- | PUN- | PUN-CM- | PUN-DUO- | PUN-H- | PUN-H-DUO- | PUN-S- | PUN-S-DUO- | PUN-V0-
- Tubing insertion depth
- 12.7 mm | 14.9 mm
- Note on the tubing insertion depth
- Ø4 depth 12.7 mm | Ø4 depth 14.9 mm
- Mounting position
- Any
- Design
- Bulkhead
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Information on operating pressure
- Water: max. 0.6 MPa at 0 - 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Official Festo technical specifications
- Size Standard Nominal width 1.5 mm Approved tubing type PAN- PAN-MF- PAN-R- PAN-V0- PEN- PFAN- PLN- PTFEN- PUN- PUN-CM- PUN-DUO- PUN-H- PUN-H-DUO- PUN-S- PUN-S-DUO- PUN-V0- Tubing insertion depth 12.7 mm 14.9 mm Note on the tubing insertion depth Ø4 depth 12.7 mm Ø4 depth 14.9 mm Mounting position Any Design Bulkhead Pack size 1 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...0.6 MPa -0.95 bar...6 bar -13.775 psi...87 psi Temperature-dependent operating pressure -0.095 MPa...1.4 MPa -0.95 bar...14 bar -13.775 psi...203 psi Information on operating pressure Water: max. 0.6 MPa at 0 - 50 °C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 130637. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
