Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

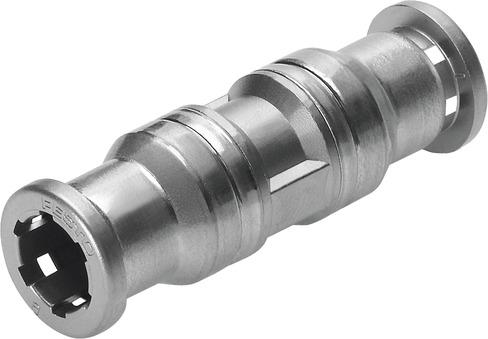

Reference imageConfirm configuration by manufacturer part number.
Festo
130650
Push-in connector CRQS-16
The Festo 130650 is a straight industrial component featuring a standard size, a 10.5 mm nominal width, and a push-pull structural design that accommodates 16 mm outside diameter pneumatic tubing on both connections. Constructed with a high-alloy stainless steel housing providing CRC 4 corrosion resistance, this unit operates with compressed air or liquid water across a temperature range of -15 °C to 120 °C and pressures from -0.95 bar to 10 bar. It supports PFAN usable connector cables, permits oil lubrication, and complies with RoHS and VDMA24364-B1/B2-L LABS standards. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 130650
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 130650.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 10.5 mm
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Operation with oil lubrication possible
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -15 °C...120 °C
- Product weight
- 63 g
- Usable connector cables
- PFAN
- Pneumatic connection 1
- for pneumatic tubing outside diameter 16 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 16 mm
- Note on materials
- RoHS-compliant
- Housing material
- High-alloy stainless steel
- Releasing ring material
- High-alloy stainless steel
- Material of tubing seal
- FPM
- Material of tube retaining claw
- High-alloy stainless steel
- Thrust ring material
- High-alloy stainless steel
- Official Festo technical specifications
- Size Standard Nominal width 10.5 mm Mounting position Any Design Straight design Pack size 1 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...1 MPa -0.95 bar...10 bar -13.775 psi...145 psi Information on operating pressure Water: max. 0.6 MPa at max. 50 °C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Information on operating and pilot media Operation with oil lubrication possible Corrosion resistance class (CRC) 4 - Particularly high corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L For use in the food industry See supplementary material information Ambient temperature -15 °C...120 °C Product weight 63 g Usable connector cables PFAN Pneumatic connection 1 for pneumatic tubing outside diameter 16 mm Pneumatic connection 2 for pneumatic tubing outside diameter 16 mm Note on materials RoHS-compliant Housing material High-alloy stainless steel Releasing ring material High-alloy stainless steel Material of tubing seal FPM Material of tube retaining claw High-alloy stainless steel Thrust ring material High-alloy stainless steel May 10, 2024 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 130650. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
