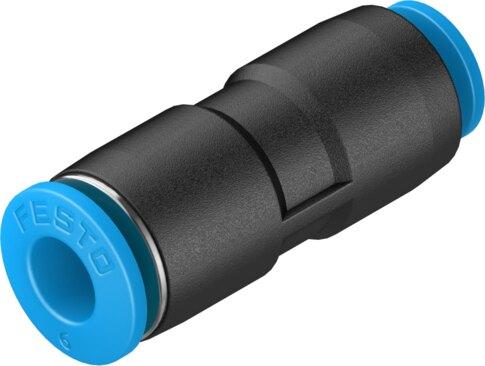

Name: Festo 130691 Push-in connector QS-6-4-100
Brand: Festo

Push-in connector QS-6-4-100

Festo part number 130691 is a straight industrial component featuring a push-pull structural design with a standard size and a 2.8 mm nominal width. This unit connects a 6 mm pneumatic tubing outside diameter to a 4 mm pneumatic tubing outside diameter, accommodating tubing insertion depths of 17 mm for the 6 mm diameter and 14.9 mm for the 4 mm diameter. It operates across an ambient temperature range of -10 °C to 80 °C, supporting compressed air per ISO 8573-1:2010 [7:-:-] and ice-free liquid water with lubricated operation possible. Each bulk pack contains 100 units, weighing 6.4 g each and offering a corrosion resistance class of 1 alongside ISO 14644-1 Class 4 cleanroom suitability. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 130691
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 130691.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Standard
Nominal width: 2.8 mm
Tubing insertion depth: 14.9 mm | 17 mm
Note on the tubing insertion depth: Ø4 depth 14.9 mm | Ø6 depth 17 mm
Mounting position: Any
Design: Straight design
Pack size: 100
Structural design: Push-pull principle
Operating pressure for entire temperature range: -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
Temperature-dependent operating pressure: -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
Information on operating pressure: Water: max. 0.6 MPa at max. 50 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Ambient temperature: -10 °C...80 °C
Product weight: 6.4 g
Pneumatic connection 1: For pneumatic tubing outside diameter 6 mm
Pneumatic connection 2: for pneumatic tubing outside diameter 4 mm
Releasing ring color: Blue
Note on materials: RoHS compliant
Housing material: PBT
Releasing ring material: POM
Material of tubing seal: NBR
Material of tube retaining claw: high-alloy stainless steel
Official Festo technical specifications: Size Standard Nominal width 2.8 mm Tubing insertion depth 14.9 mm 17 mm Note on the tubing insertion depth Ø4 depth 14.9 mm Ø6 depth 17 mm Mounting position Any Design Straight design Pack size 100 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...0.6 MPa -0.95 bar...6 bar -13.775 psi...87 psi Temperature-dependent operating pressure -0.095 MPa...1.4 MPa -0.95 bar...14 bar -13.775 psi...203 psi Information on operating pressure Water: max. 0.6 MPa at max. 50 °C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14 Class 4 according to ISO 14644-1 Ambient temperature -10 °C...80 °C Product weight 6.4 g Pneumatic connection 1 For pneumatic tubing outside diameter 6 mm Pneumatic connection 2 for pneumatic tubing outside diameter 4 mm Releasing ring color Blue Note on materials RoHS compliant Housing material PBT Releasing ring material POM Material of tubing seal NBR Material of tube retaining claw high-alloy stainless steel 6/5/26 –
