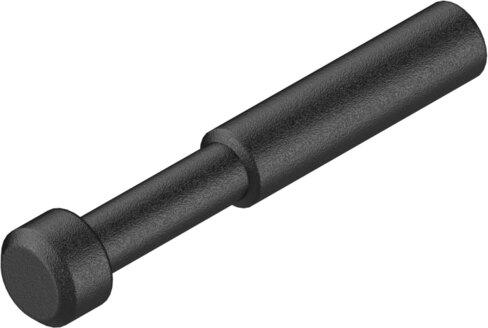

Reference imageConfirm configuration by manufacturer part number.
Festo
130699
Blanking plug QSC-4H-100
The Festo 130699 is a standard blanking plug featuring a push-in sleeve for a Ø 4 mm pneumatic connection and a robust PBT housing with a product weight of 0.5 g. It accommodates an operating pressure of -0.095 MPa to 0.6 MPa across its entire temperature range, a temperature-dependent operating pressure up to 1.4 MPa, and functions within an ambient temperature range of -10 °C to 80 °C using compressed air or ice-free liquid water. This component is supplied in a pack size of 100, offers RoHS compliance, and supports lubricated operation with a corrosion resistance class of 1. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 130699
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 130699.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Mounting position
- Any
- Design
- Blanking plug
- Pack size
- 100
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 0.5 g
- Pneumatic connection 1
- Push-in sleeve Ø 4 mm
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Official Festo technical specifications
- Size Standard Mounting position Any Design Blanking plug Pack size 100 Operating pressure for entire temperature range -0.095 MPa...0.6 MPa -0.95 bar...6 bar -13.775 psi...87 psi Temperature-dependent operating pressure -0.095 MPa...1.4 MPa -0.95 bar...14 bar -13.775 psi...203 psi Information on operating pressure Water: max. 0.6 MPa at max. 50 °C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14 Statically installed element, no meaningful evaluation possible according to ISO 14644-1 Ambient temperature -10 °C...80 °C Product weight 0.5 g Pneumatic connection 1 Push-in sleeve Ø 4 mm Note on materials RoHS compliant Housing material PBT 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 130699. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
