Festo
130702

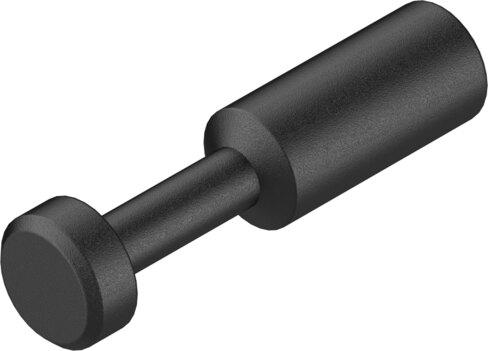

Blanking plug QSC-10H-50
The Festo 130702 is a standard blanking plug featuring a Ø 10 mm push-in sleeve and a PBT housing with a product weight of 2 g. This component supports any mounting position, an ambient temperature range of -10 °C to 80 °C, and compressed air or liquid water operating media with lubricated operation possible. It provides an operating pressure from -0.095 MPa to 0.6 MPa across the entire temperature range and up to 1.4 MPa depending on temperature, alongside CRC 1 corrosion resistance and RoHS compliance. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 130702
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 130702.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Mounting position
- Any
- Design
- Blanking plug
- Pack size
- 50
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 2 g
- Pneumatic connection 1
- Push-in sleeve Ø 10 mm
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Official Festo technical specifications
- Size Standard Mounting position Any Design Blanking plug Pack size 50 Operating pressure for entire temperature range -0.095 MPa...0.6 MPa -0.95 bar...6 bar -13.775 psi...87 psi Temperature-dependent operating pressure -0.095 MPa...1.4 MPa -0.95 bar...14 bar -13.775 psi...203 psi Information on operating pressure Water: max. 0.6 MPa at max. 50 °C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14 Statically installed element, no meaningful evaluation possible according to ISO 14644-1 Ambient temperature -10 °C...80 °C Product weight 2 g Pneumatic connection 1 Push-in sleeve Ø 10 mm Note on materials RoHS compliant Housing material PBT 6/5/26 –
