Festo
130710

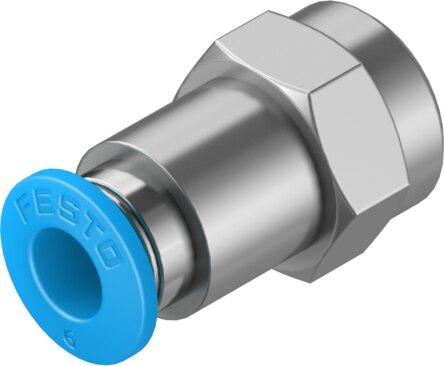

Push-in fitting QSF-1/8-6-B-100
This Festo industrial component, part number 130710, is a straight-design push-pull fitting featuring a standard size, a 5 mm nominal width, and a 17 mm tubing insertion depth with a coated screwed plug seal. Operating within a temperature range of -10 °C to 80 °C, it handles compressed air per ISO 8573-1:2010 [7:-:-] and ice-free liquid water at pressures spanning -0.095 MPa to 1.4 MPa. The unit weighs 15 g, features a CRC 1 low corrosion stress rating, meets ISO 14644-1 Class 4 cleanroom suitability, and is supplied in a pack size of 100 with a nominal tightening torque of 7 Nm. Submit part number 130710, required quantity, and application specifications for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 130710
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 130710.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 5 mm
- Tubing insertion depth
- 17 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 100
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Nominal tightening torque
- 7 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 15 g
- Type of mounting
- External hexagon SW14
- Pneumatic connection 1
- Internal thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Official Festo technical specifications
- Size Standard Nominal width 5 mm Tubing insertion depth 17 mm Type of seal on screwed plug Coating Mounting position Any Design Straight design Pack size 100 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...0.6 MPa -0.95 bar...6 bar -13.775 psi...87 psi Temperature-dependent operating pressure -0.095 MPa...1.4 MPa -0.95 bar...14 bar -13.775 psi...203 psi Information on operating pressure Water: max. 0.6 MPa at max. 50 °C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14 Class 4 according to ISO 14644-1 Ambient temperature -10 °C...80 °C Nominal tightening torque 7 Nm Tolerance for nominal tightening torque ±20% Product weight 15 g Type of mounting External hexagon SW14 Pneumatic connection 1 Internal thread G1/8 Pneumatic connection 2 for pneumatic tubing outside diameter 6 mm Releasing ring color Blue Note on materials RoHS compliant Housing material Brass, nickel-plated Releasing ring material POM Material of tubing seal NBR 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 130710. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
