Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

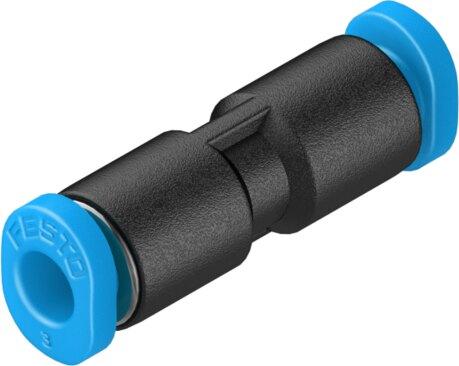

Reference imageConfirm configuration by manufacturer part number.
Festo
130757
Push-in connector QSM-3-100
This Festo industrial component, part number 130757, is a mini straight design push-pull fitting featuring a 1.9 mm nominal width and a 9.5 mm tubing insertion depth for 3 mm outside diameter pneumatic tubing on both connections. Constructed with a PBT housing and a blue releasing ring, the unit weighs 1.5 g and supports any mounting position, an operating pressure ranging from -0.095 MPa to 0.6 MPa across its full temperature range, and compressed air media according to ISO 8573-1:2010 [7:-:-] with lubricated operation capability. The pack size contains 100 RoHS-compliant units with a CRC of 1, VDMA24364-B1/B2-L LABS conformity, and an ambient operating temperature range of -10 °C to 80 °C. Submit part number 130757, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 130757
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 130757.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 1.9 mm
- Tubing insertion depth
- 9.5 mm
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 100
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 1.5 g
- Pneumatic connection 1
- for pneumatic tubing outside diameter 3 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
- Official Festo technical specifications
- Size Mini Nominal width 1.9 mm Tubing insertion depth 9.5 mm Mounting position Any Design Straight design Pack size 100 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...0.6 MPa -0.95 bar...6 bar -13.775 psi...87 psi Temperature-dependent operating pressure -0.095 MPa...1.4 MPa -0.95 bar...14 bar -13.775 psi...203 psi Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature -10 °C...80 °C Product weight 1.5 g Pneumatic connection 1 for pneumatic tubing outside diameter 3 mm Pneumatic connection 2 for pneumatic tubing outside diameter 3 mm Releasing ring color Blue Note on materials RoHS compliant Housing material PBT Releasing ring material POM Material of tubing seal NBR Material of tube retaining claw high-alloy stainless steel 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 130757. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
