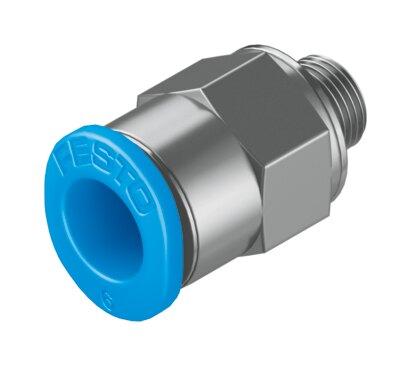

Reference imageConfirm configuration by manufacturer part number.
Festo
130779
Push-in fitting QSM-M5-6-100
The Festo 130779 is a mini straight industrial component featuring a 2.1 mm nominal width, an M5 external thread pneumatic connection 1, and an external hexagon SW10 type of mounting. Designed with a push-pull principle and a sealing ring on the screwed plug, this part supports a 12 mm tubing insertion depth, operates within a temperature-dependent pressure range of -0.95 bar to 14 bar, and accommodates compressed air per ISO 8573-1:2010 [7:-:-] with lubricated operation possible. It weighs 4.5 g, has a corrosion resistance class of 1, requires a nominal tightening torque of 1.2 Nm with a ±20% tolerance, and comes in a pack size of 100 for versatile mounting in any position across an ambient temperature range of -10 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 130779
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 130779.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 2.1 mm
- Tubing insertion depth
- 12 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 100
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Nominal tightening torque
- 1.2 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 4.5 g
- Type of mounting
- External hexagon SW10
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
- Official Festo technical specifications
- Size Mini Nominal width 2.1 mm Tubing insertion depth 12 mm Type of seal on screwed plug Sealing ring Mounting position Any Design Straight design Pack size 100 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...0.6 MPa -0.95 bar...6 bar -13.775 psi...87 psi Temperature-dependent operating pressure -0.095 MPa...1.4 MPa -0.95 bar...14 bar -13.775 psi...203 psi Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature -10 °C...80 °C Nominal tightening torque 1.2 Nm Tolerance for nominal tightening torque ±20% Product weight 4.5 g Type of mounting External hexagon SW10 Pneumatic connection 1 External thread M5 Pneumatic connection 2 for pneumatic tubing outside diameter 6 mm Releasing ring color Blue Note on materials RoHS compliant Housing material Brass, nickel-plated Releasing ring material POM Material of tubing seal NBR Material of tube retaining claw high-alloy stainless steel 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 130779. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
