Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

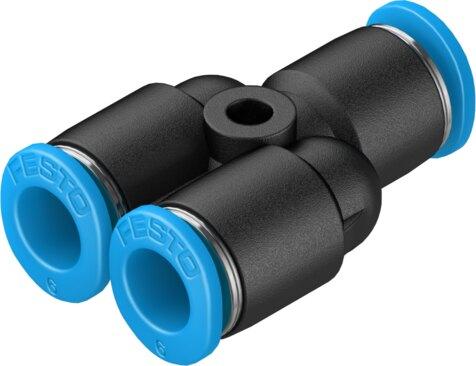

Reference imageConfirm configuration by manufacturer part number.
Festo
130787
Push-in Y-connector QSMY-6-100
The Festo 130787 is a mini Y-shape industrial component featuring a 2.9 mm nominal width, an 11.9 mm tubing insertion depth, and two 6 mm pneumatic connection outlets supplied by one line using the push-pull principle. Operating on compressed air according to ISO 8573-1:2010 [7:-:-], this 5.5 g component supports an operating pressure of -0.095 MPa to 0.6 MPa across its full temperature range and -0.095 MPa to 1.4 MPa depending on temperature, while accommodating lubricated operation. Delivered in a pack size of 100 with a blue releasing ring, it features an ambient temperature range of -10 °C to 80 °C, a corrosion resistance class of 1, and VDMA24364-B1/B2-L LABS conformity for any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 130787
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 130787.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 2.9 mm
- Tubing insertion depth
- 11.9 mm
- Mounting position
- Any
- Design
- Y-shape
- Pack size
- 100
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 5.5 g
- No. of outlets
- 2
- No. of supply lines
- 1
- Pneumatic connection 1
- For pneumatic tubing outside diameter 6 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
- Official Festo technical specifications
- Size Mini Nominal width 2.9 mm Tubing insertion depth 11.9 mm Mounting position Any Design Y-shape Pack size 100 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...0.6 MPa -0.95 bar...6 bar -13.775 psi...87 psi Temperature-dependent operating pressure -0.095 MPa...1.4 MPa -0.95 bar...14 bar -13.775 psi...203 psi Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature -10 °C...80 °C Product weight 5.5 g No. of outlets 2 No. of supply lines 1 Pneumatic connection 1 For pneumatic tubing outside diameter 6 mm Pneumatic connection 2 for pneumatic tubing outside diameter 6 mm Releasing ring color Blue Note on materials RoHS compliant Housing material PBT Releasing ring material POM Material of tubing seal NBR Material of tube retaining claw high-alloy stainless steel 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 130787. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
