Festo
130790

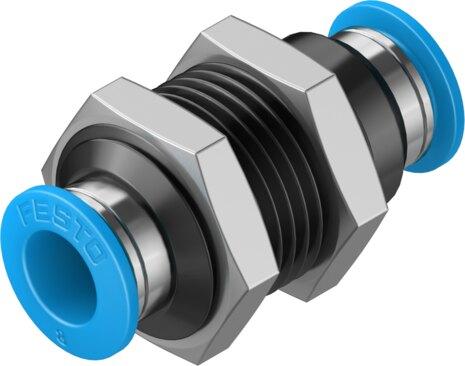

Push-in bulkhead connector QSS-8-50
The Festo part number 130790 is a standard bulkhead industrial component featuring a 7 mm nominal width and an 18.2 mm tubing insertion depth utilizing a push-pull structural design for 8 mm outside diameter pneumatic tubing on both connections. It operates with compressed air according to ISO 8573-1:2010 [7:-:-] or liquid, ice-free water across an ambient temperature range of -10 °C to 80 °C, supporting operating pressures from -0.095 MPa to 1.4 MPa depending on temperature. This 19 g component features an external hexagon SW19 type of mounting, any mounting position, a corrosion resistance class of 1, and is supplied in a pack size of 50. Submit the exact part number, quantity, and application requirements to receive a quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 130790
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 130790.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 7 mm
- Tubing insertion depth
- 18.2 mm
- Mounting position
- Any
- Design
- Bulkhead
- Pack size
- 50
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 19 g
- Type of mounting
- External hexagon SW19
- Pneumatic connection 1
- for pneumatic tubing outside diameter 8 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Anodized aluminum
- Releasing ring material
- POM
- Nut material
- Brass, nickel-plated
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
- Official Festo technical specifications
- Size Standard Nominal width 7 mm Tubing insertion depth 18.2 mm Mounting position Any Design Bulkhead Pack size 50 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...0.6 MPa -0.95 bar...6 bar -13.775 psi...87 psi Temperature-dependent operating pressure -0.095 MPa...1.4 MPa -0.95 bar...14 bar -13.775 psi...203 psi Information on operating pressure Water: max. 0.6 MPa at max. 50 °C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14 Class 4 according to ISO 14644-1 Ambient temperature -10 °C...80 °C Product weight 19 g Type of mounting External hexagon SW19 Pneumatic connection 1 for pneumatic tubing outside diameter 8 mm Pneumatic connection 2 for pneumatic tubing outside diameter 8 mm Releasing ring color Blue Note on materials RoHS compliant Housing material Anodized aluminum Releasing ring material POM Nut material Brass, nickel-plated Material of tubing seal NBR Material of tube retaining claw high-alloy stainless steel 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 130790. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
