Festo
130793

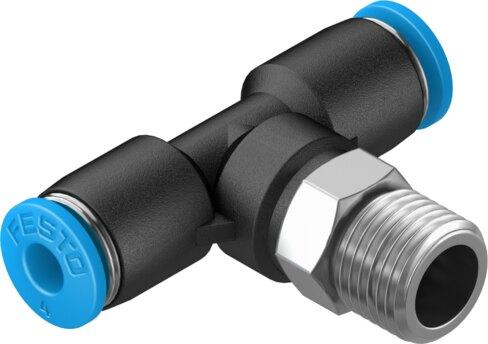

Push-in T-fitting QST-1/8-4-100
The Festo 130793 is a standard T-shaped industrial component featuring a push-pull structural design with a nominal width of 2.8 mm, a 14.9 mm tubing insertion depth, one supply line, and two outlets. It operates with compressed air or liquid water under specified pressure ranges across an ambient temperature of -10 °C to 80 °C, utilizing a coated screwed plug seal and offering ISO Class 4 cleanroom suitability. Supplied in a pack size of 100 with a product weight of 13 g each, this unit conforms to VDMA24364-B1/B2-L LABS conformity and CRC 1 corrosion resistance. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 130793
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 130793.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 2.8 mm
- Tubing insertion depth
- 14.9 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 100
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 13 g
- No. of outlets
- 2
- No. of supply lines
- 1
- Type of mounting
- External hexagon SW10
- Pneumatic connection 1
- External thread R1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- Blue
- Material of screwed plug
- Brass, nickel-plated
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Official Festo technical specifications
- Size Standard Nominal width 2.8 mm Tubing insertion depth 14.9 mm Type of seal on screwed plug Coating Mounting position Any Design T-shape Pack size 100 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...0.6 MPa -0.95 bar...6 bar -13.775 psi...87 psi Temperature-dependent operating pressure -0.095 MPa...1.4 MPa -0.95 bar...14 bar -13.775 psi...203 psi Information on operating pressure Water: max. 0.6 MPa at max. 50 °C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14 Class 4 according to ISO 14644-1 Ambient temperature -10 °C...80 °C Product weight 13 g No. of outlets 2 No. of supply lines 1 Type of mounting External hexagon SW10 Pneumatic connection 1 External thread R1/8 Pneumatic connection 2 for pneumatic tubing outside diameter 4 mm Releasing ring color Blue Material of screwed plug Brass, nickel-plated Note on materials RoHS compliant Housing material PBT Releasing ring material POM 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 130793. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
