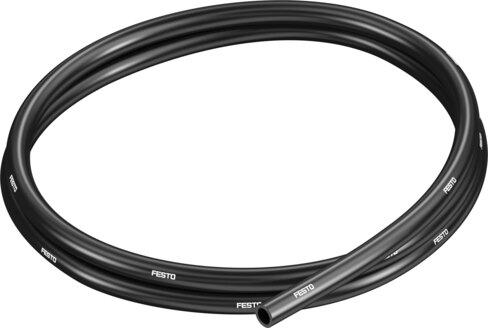

Reference imageConfirm configuration by manufacturer part number.
Festo
130816
Plastic tubing PUN-CM-8-SW
Engineered with a TPE-U(PU) construction in black, this Festo industrial component features an outside diameter of 8 mm, an inside diameter of 5.5 mm, and a shore hardness of D 52 +/-3. The tubing is suitable for energy chains, supports a temperature-dependent operating pressure from -0.095 MPa to 1 MPa (-0.95 bar to 10 bar | -13.775 psi to 145 psi), and operates within an ambient temperature range of -35 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:-:-]. Additional technical properties include a minimum bending radius of 20 mm, a flow-relevant bending radius of 37 mm, a surface resistance of 0.01 MOhm to 10 MOhm, VDMA24364-B2-L LABS conformity, and RoHS compliance with a product weight of 0.03527 kg/m. Submit the exact part number, quantity, and application requirements to receive a formal quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 130816
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 130816.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 8 mm
- Bending radius relevant for ow rate
- 37 mm
- Inside diameter
- 5.5 mm
- Min. bending radius
- 20 mm
- Tubing characteristics
- Suitable for energy chains
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Surface resistance
- 0.01 MOhm...10 MOhm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Product weight by length
- 0.03527 kg/m
- Pneumatic connection
- For plug connection outside diameter 8 mm
- Color
- Black
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
- Official Festo technical specifications
- Outside diameter 8 mm Bending radius relevant for ow rate 37 mm Inside diameter 5.5 mm Min. bending radius 20 mm Tubing characteristics Suitable for energy chains Temperature-dependent operating pressure -0.095 MPa...1 MPa -0.95 bar...10 bar -13.775 psi...145 psi Surface resistance 0.01 MOhm...10 MOhm Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] LABS (PWIS) conformity VDMA24364-B2-L Ambient temperature -35 °C...60 °C Product weight by length 0.03527 kg/m Pneumatic connection For plug connection outside diameter 8 mm Color Black Shore hardness D 52 +/-3 Note on materials RoHS compliant Material of pneumatic tubing TPE-U(PU) 6/5/26 –
