Festo
130817

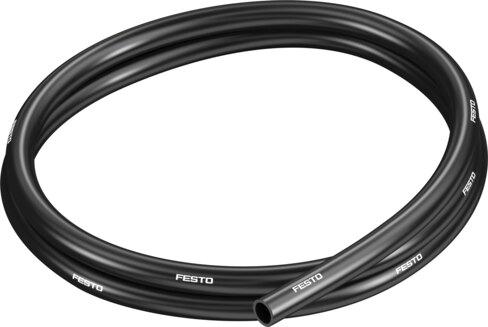

Plastic tubing PUN-CM-10-SW
The Festo part number 130817 is a black TPE-U(PU) pneumatic tubing component featuring a 10 mm outside diameter, a 7 mm inside diameter, and a Shore hardness of D 52 +/-3. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] across a temperature-dependent operating pressure of -0.095 MPa to 1 MPa and an ambient temperature range of -35 °C to 60 °C. Designed with a minimum bending radius of 30 mm and a flow rate bending radius of 60 mm, this RoHS-compliant component is suitable for energy chains and features a VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 130817
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 130817.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 10 mm
- Bending radius relevant for ow rate
- 60 mm
- Inside diameter
- 7 mm
- Min. bending radius
- 30 mm
- Tubing characteristics
- Suitable for energy chains
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Surface resistance
- 0.01 MOhm...10 MOhm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Product weight by length
- 0.05158 kg/m
- Pneumatic connection
- For plug connection outside diameter 10 mm
- Color
- Black
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
- Official Festo technical specifications
- Outside diameter 10 mm Bending radius relevant for ow rate 60 mm Inside diameter 7 mm Min. bending radius 30 mm Tubing characteristics Suitable for energy chains Temperature-dependent operating pressure -0.095 MPa...1 MPa -0.95 bar...10 bar -13.775 psi...145 psi Surface resistance 0.01 MOhm...10 MOhm Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] LABS (PWIS) conformity VDMA24364-B2-L Ambient temperature -35 °C...60 °C Product weight by length 0.05158 kg/m Pneumatic connection For plug connection outside diameter 10 mm Color Black Shore hardness D 52 +/-3 Note on materials RoHS compliant Material of pneumatic tubing TPE-U(PU) 6/5/26 –
