Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
130818

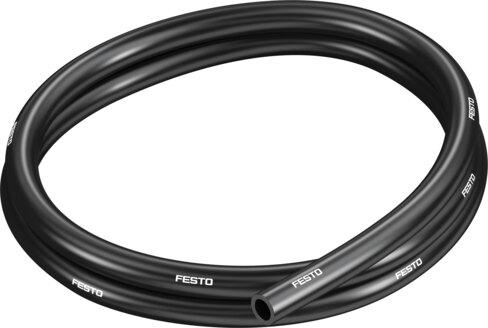

Plastic tubing PUN-CM-12-SW
This Festo industrial component (part number 130818) is a black TPE-U(PU) pneumatic tubing featuring a 12 mm outside diameter, an 8 mm inside diameter, and a Shore hardness of D 52 +/-3. It accommodates a temperature-dependent operating pressure of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar / -13.775 psi to 145 psi) for compressed air conforming to ISO 8573-1:2010 [7:-:-], with a minimum bending radius of 30 mm and a flow-rate relevant bending radius of 70 mm. Built with VDMA24364-B2-L LABS conformity, a surface resistance of 0.01 MOhm to 10 MOhm, RoHS compliance, and a product weight of 0.08107 kg/m, this RoHS-compliant tubing is suitable for energy chains within an ambient temperature range of -35 °C to 60 °C using a 12 mm outside diameter plug connection. Submit part number 130818, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 130818
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 130818.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 12 mm
- Bending radius relevant for ow rate
- 70 mm
- Inside diameter
- 8 mm
- Min. bending radius
- 30 mm
- Tubing characteristics
- Suitable for energy chains
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Surface resistance
- 0.01 MOhm...10 MOhm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -35 °C...60 °C
- Product weight by length
- 0.08107 kg/m
- Pneumatic connection
- For plug connection outside diameter 12 mm
- Color
- Black
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
- Official Festo technical specifications
- Outside diameter 12 mm Bending radius relevant for ow rate 70 mm Inside diameter 8 mm Min. bending radius 30 mm Tubing characteristics Suitable for energy chains Temperature-dependent operating pressure -0.095 MPa...1 MPa -0.95 bar...10 bar -13.775 psi...145 psi Surface resistance 0.01 MOhm...10 MOhm Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] LABS (PWIS) conformity VDMA24364-B2-L Ambient temperature -35 °C...60 °C Product weight by length 0.08107 kg/m Pneumatic connection For plug connection outside diameter 12 mm Color Black Shore hardness D 52 +/-3 Note on materials RoHS compliant Material of pneumatic tubing TPE-U(PU) 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 130818. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
