Name: Festo 130821 Push-in T-connector QST-8-6-50
Brand: Festo

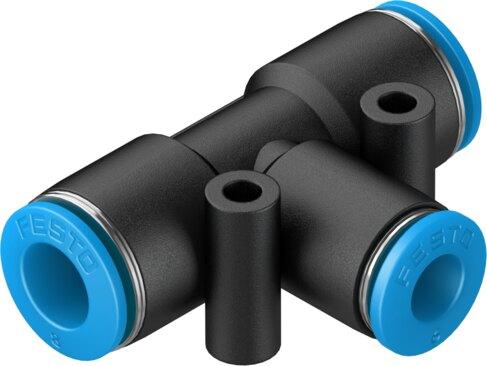

Push-in T-connector QST-8-6-50

The Festo part number 130821 is a T-shaped industrial component featuring a nominal width of 3.5 mm, two outlets, and one supply line utilizing a push-pull structural design with tubing insertion depths of 17 mm for Ø6 and 18.1 mm for Ø8. This standard-sized unit supports any mounting position, operates with compressed air or liquid water, and handles a temperature-dependent operating pressure ranging from -0.095 MPa to 1.4 MPa. Each pack size contains 50 units with a product weight of 14 g, class 1 corrosion resistance, and ISO 14644-1 class 4 cleanroom suitability. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 130821
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 130821.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Standard
Nominal width: 3.5 mm
Tubing insertion depth: 17 mm | 18.1 mm
Note on the tubing insertion depth: Ø6 depth 17 mm | Ø8 depth 18.1 mm
Mounting position: Any
Design: T-shape
Pack size: 50
Structural design: Push-pull principle
Operating pressure for entire temperature range: -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
Temperature-dependent operating pressure: -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
Information on operating pressure: Water: max. 0.6 MPa at max. 50 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Ambient temperature: -10 °C...80 °C
Product weight: 14 g
No. of outlets: 2
No. of supply lines: 1
Pneumatic connection 1: for pneumatic tubing outside diameter 8 mm
Pneumatic connection 2: for pneumatic tubing outside diameter 6 mm
Releasing ring color: Blue
Note on materials: RoHS compliant
Housing material: PBT
Releasing ring material: POM
Official Festo technical specifications: Size Standard Nominal width 3.5 mm Tubing insertion depth 17 mm 18.1 mm Note on the tubing insertion depth Ø6 depth 17 mm Ø8 depth 18.1 mm Mounting position Any Design T-shape Pack size 50 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...0.6 MPa -0.95 bar...6 bar -13.775 psi...87 psi Temperature-dependent operating pressure -0.095 MPa...1.4 MPa -0.95 bar...14 bar -13.775 psi...203 psi Information on operating pressure Water: max. 0.6 MPa at max. 50 °C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14 Class 4 according to ISO 14644-1 Ambient temperature -10 °C...80 °C Product weight 14 g No. of outlets 2 No. of supply lines 1 Pneumatic connection 1 for pneumatic tubing outside diameter 8 mm Pneumatic connection 2 for pneumatic tubing outside diameter 6 mm Releasing ring color Blue Note on materials RoHS compliant Housing material PBT Releasing ring material POM 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 130821. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
