1312504

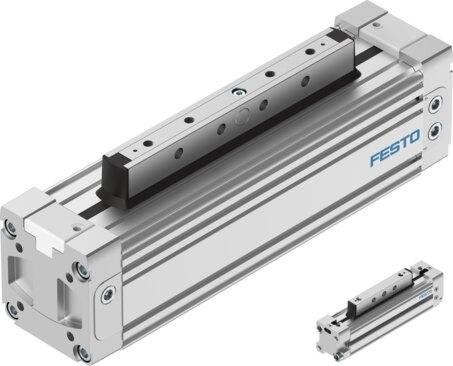

Name: Festo 1312504 Linear actuator DGC-K-50- -
Brand: Festo

Linear actuator DGC-K-50- -

The Festo 1312504 is a double-acting industrial component featuring a 50 mm piston diameter, an adjustable stroke range from 1 mm to 6000 mm, and adjustable pneumatic cushioning at both ends. It operates within a pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar) using compressed air as per ISO 8573-1:2010 [7:-:-], with position sensing via proximity switch and a universal mounting position. Certified for hazardous locations, it carries ATEX and UKCA markings for Gas Zone 1 and Dust Zone 22, featuring Ex h IIC T4 Gb X and Ex h IIIC T120°C Dc X ignition protection for explosive ambient temperatures between -10°C and +60°C. Submit your required part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1312504
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1312504.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 1 mm...6000 mm
Piston diameter: 50 mm
Cushioning: Pneumatic cushioning, adjustable at both ends
Mounting position: Any
Position sensing: Via proximity switch
Variants: Supply port at both ends | Standard piston | Extended piston
Operating pressure: 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
Mode of operation: Double-acting
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 22 (ATEX)
ATEX category gas: II 2G
ATEX category for dust: II 3D
Type of ignition protection for gas: Ex h IIC T4 Gb X
Type of (ignition) protection for dust: Ex h IIIC T120°C Dc X
Explosive ambient temperature: -10°C <= Ta <= +60°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
For use in the food industry: See supplementary material information
Ambient temperature: -10 °C...60 °C
Cushioning length: 30 mm
Theoretical force at 6 bar, retracting: 1178 N
Theoretical force at 6 bar, advancing: 1178 N
Alternative connections: See product drawing
Type of mounting: With accessories
Note on materials: RoHS compliant
Official Festo technical specifications: Stroke 1 mm...6000 mm Piston diameter 50 mm Cushioning Pneumatic cushioning, adjustable at both ends Mounting position Any Position sensing Via proximity switch Variants Supply port at both ends Standard piston Extended piston Operating pressure 0.15 MPa...0.8 MPa 1.5 bar...8 bar Mode of operation Double-acting CE marking (see declaration of conformity) as per EU explosion protection directive (ATEX) UKCA marking (see declaration of conformity) acc. to UK EX instructions Explosion prevention and protection Zone 1 (ATEX) Zone 2 (ATEX) Zone 22 (ATEX) ATEX category gas II 2G ATEX category for dust II 3D Type of ignition protection for gas Ex h IIC T4 Gb X Type of (ignition) protection for dust Ex h IIIC T120°C Dc X Explosive ambient temperature -10°C <= Ta <= +60°C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L For use in the food industry See supplementary material information Ambient temperature -10 °C...60 °C Cushioning length 30 mm Theoretical force at 6 bar, retracting 1178 N Theoretical force at 6 bar, advancing 1178 N Alternative connections See product drawing Type of mounting With accessories Note on materials RoHS compliant 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1312504. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
