Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

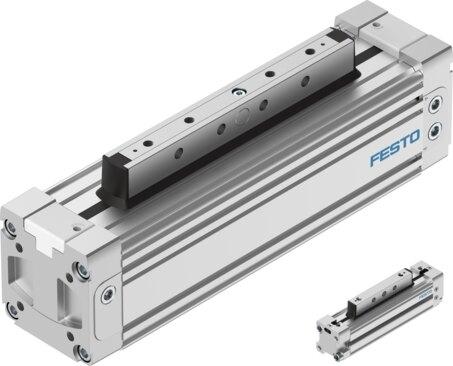

Reference imageConfirm configuration by manufacturer part number.
Festo
1312505
Linear actuator DGC-K-63- -
This double-acting industrial component from Festo features a 63 mm piston diameter with an adjustable stroke range from 1 mm to 5000 mm, operating at pressures between 0.15 MPa and 0.8 MPa (1.5 bar to 8 bar) using compressed air conforming to ISO 8573-1:2010 [7:-:-]. Certified for explosive environments under ATEX Zones 1, 2, and 22 as well as UK EX instructions, the unit incorporates adjustable pneumatic cushioning at both ends, position sensing via proximity switch, and variants supporting supply ports at both ends, standard pistons, or extended pistons. The assembly is rated for ambient operating temperatures from -10°C to +60°C with a corrosion resistance class of CRC 1 and VDMA24364-B1/B2-L LABS conformity, while permitting oil lubrication for continued operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1312505
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1312505.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...5000 mm
- Piston diameter
- 63 mm
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Position sensing
- Via proximity switch
- Variants
- Supply port at both ends | Standard piston | Extended piston
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Mode of operation
- Double-acting
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
- ATEX category for dust
- II 3D
- Type of ignition protection for gas
- Ex h IIC T4 Gb X
- Type of (ignition) protection for dust
- Ex h IIIC T120°C Dc X
- Explosive ambient temperature
- -10°C <= Ta <= +60°C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -10 °C...60 °C
- Cushioning length
- 30 mm
- Theoretical force at 6 bar, retracting
- 1870 N
- Theoretical force at 6 bar, advancing
- 1870 N
- Alternative connections
- See product drawing
- Type of mounting
- With accessories
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Stroke 1 mm...5000 mm Piston diameter 63 mm Cushioning Pneumatic cushioning, adjustable at both ends Mounting position Any Position sensing Via proximity switch Variants Supply port at both ends Standard piston Extended piston Operating pressure 0.15 MPa...0.8 MPa 1.5 bar...8 bar Mode of operation Double-acting CE marking (see declaration of conformity) as per EU explosion protection directive (ATEX) UKCA marking (see declaration of conformity) acc. to UK EX instructions Explosion prevention and protection Zone 1 (ATEX) Zone 2 (ATEX) Zone 22 (ATEX) ATEX category gas II 2G ATEX category for dust II 3D Type of ignition protection for gas Ex h IIC T4 Gb X Type of (ignition) protection for dust Ex h IIIC T120°C Dc X Explosive ambient temperature -10°C <= Ta <= +60°C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L For use in the food industry See supplementary material information Ambient temperature -10 °C...60 °C Cushioning length 30 mm Theoretical force at 6 bar, retracting 1870 N Theoretical force at 6 bar, advancing 1870 N Alternative connections See product drawing Type of mounting With accessories Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1312505. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
