Festo
132061

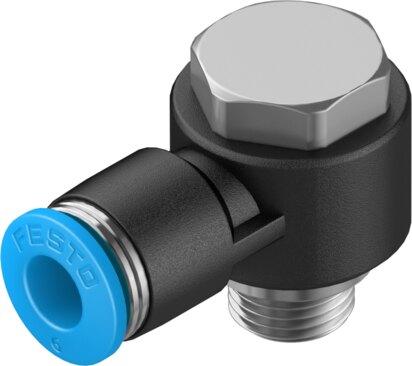

Push-in L-fitting QSLV-G1/8-6-100
This standard Festo industrial component, part number 132061, features an L-shape design with a 4 mm nominal width, a 17 mm tubing insertion depth, and a push-pull structural design utilizing a sealing ring on the screwed plug. Operating on compressed air according to ISO 8573-1:2010 [7:-:-] or liquid, ice-free water, it supports an operating pressure of -0.095 MPa to 0.6 MPa across its entire temperature range and up to 1.4 MPa under temperature-dependent conditions within an ambient range of -10 °C to 80 °C. The unit has a product weight of 23 g, a corrosion resistance class of 1, and is supplied in a pack size of 100. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 132061
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 132061.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 4 mm
- Tubing insertion depth
- 17 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- L-shape
- Pack size
- 100
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible | Water: G-thread only possible with sealing ring type OL as additional | accessory
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Nominal tightening torque
- 5.4 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 23 g
- Type of mounting
- Hollow bolt with external hex
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Official Festo technical specifications
- Size Standard Nominal width 4 mm Tubing insertion depth 17 mm Type of seal on screwed plug Sealing ring Mounting position Any Design L-shape Pack size 100 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...0.6 MPa -0.95 bar...6 bar -13.775 psi...87 psi Temperature-dependent operating pressure -0.095 MPa...1.4 MPa -0.95 bar...14 bar -13.775 psi...203 psi Information on operating pressure Water: max. 0.6 MPa at max. 50 °C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Information on operating and pilot media Lubricated operation possible Water: G-thread only possible with sealing ring type OL as additional accessory Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14 Class 4 according to ISO 14644-1 Ambient temperature -10 °C...80 °C Nominal tightening torque 5.4 Nm Tolerance for nominal tightening torque ±20% Product weight 23 g Type of mounting Hollow bolt with external hex Pneumatic connection 1 External thread G1/8 Pneumatic connection 2 for pneumatic tubing outside diameter 6 mm Releasing ring color Blue Note on materials RoHS compliant Housing material PBT 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 132061. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
