Festo
1322181

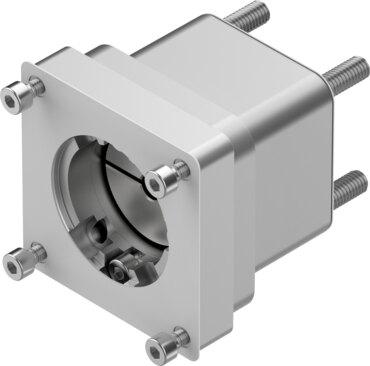

Axial kit EAMM-A-D32-57A-S1
This Festo industrial component, part number 1322181, features a nominal length of 52 mm, a transferable torque of 6.5 Nm, and a maximum rotational speed of 8000 rpm. The unit includes an actuator interface code of D32 and a motor input interface code of 57A, with a total product weight of 270 g and a mass moment of inertia of 5.87 kgmm². Built with RoHS-compliant materials and meeting IP65 degree of protection standards, it supports an ambient operating temperature range of -10 °C to 60 °C and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1322181
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1322181.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 52 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 6.5 Nm
- Product weight
- 270 g
- Interface code, actuator
- D32
- Interface code, motor in
- 57A
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Nominal length 52 mm Mounting position Any Max. rotational speed 8000 rpm LABS (PWIS) conformity VDMA24364 Zone III Storage temperature -25 °C...60 °C Relative air humidity 0 - 95% Degree of protection IP65 Ambient temperature -10 °C...60 °C Mass moment of inertia 5.87 kgmm² Transferable torque 6.5 Nm Product weight 270 g Interface code, actuator D32 Interface code, motor in 57A Note on materials RoHS compliant 6/5/26 –
