Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

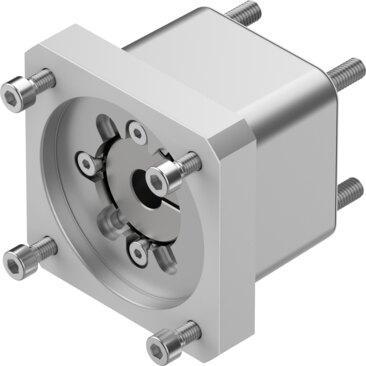

Reference imageConfirm configuration by manufacturer part number.
Festo
1322185
Axial kit EAMM-A-D40-70A-S1
The Festo part number 1322185 is an industrial component featuring a nominal length of 53.5 mm, a product weight of 410 g, and an actuator interface code of D40 with a motor in interface code of 70A. It delivers a transferable torque of 12.5 Nm, a mass moment of inertia of 5.87 kgmm², and a maximum rotational speed of 8000 rpm while supporting any mounting position and providing IP65 degree of protection. Operating within an ambient temperature range of -10 °C to 60 °C, storage temperatures from -25 °C to 60 °C, and 0 to 95% relative air humidity, this RoHS-compliant unit adheres to VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1322185
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1322185.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 53.5 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 12.5 Nm
- Product weight
- 410 g
- Interface code, actuator
- D40
- Interface code, motor in
- 70A
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Nominal length 53.5 mm Mounting position Any Max. rotational speed 8000 rpm LABS (PWIS) conformity VDMA24364 Zone III Storage temperature -25 °C...60 °C Relative air humidity 0 - 95% Degree of protection IP65 Ambient temperature -10 °C...60 °C Mass moment of inertia 5.87 kgmm² Transferable torque 12.5 Nm Product weight 410 g Interface code, actuator D40 Interface code, motor in 70A Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1322185. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
