Festo
1322186

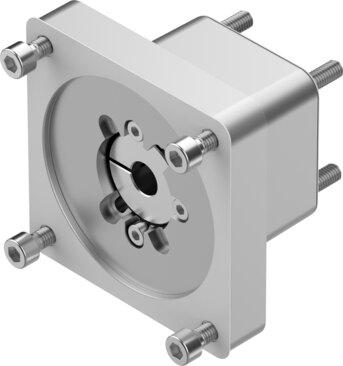

Axial kit EAMM-A-D40-87A-S1
This Festo industrial component, part number 1322186, features a nominal length of 55.5 mm, a mass moment of inertia of 5.87 kgmm², and a transferable torque of 12.5 Nm with a maximum rotational speed of 8000 rpm. The unit weighs 530 g, provides an IP65 degree of protection, and incorporates actuator interface code D40 and motor input interface code 87A while complying with VDMA24364 Zone III LABS conformity and RoHS material directives. It operates within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, and 0 to 95% relative air humidity in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1322186
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1322186.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 55.5 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 12.5 Nm
- Product weight
- 530 g
- Interface code, actuator
- D40
- Interface code, motor in
- 87A
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Nominal length 55.5 mm Mounting position Any Max. rotational speed 8000 rpm LABS (PWIS) conformity VDMA24364 Zone III Storage temperature -25 °C...60 °C Relative air humidity 0 - 95% Degree of protection IP65 Ambient temperature -10 °C...60 °C Mass moment of inertia 5.87 kgmm² Transferable torque 12.5 Nm Product weight 530 g Interface code, actuator D40 Interface code, motor in 87A Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1322186. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
