Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

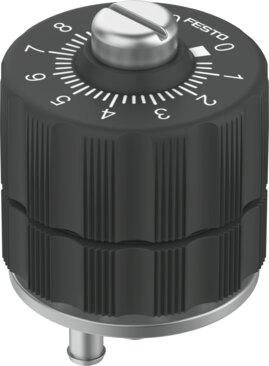

Reference imageConfirm configuration by manufacturer part number.
Festo
13230
Precision throttle valve GRPO-160-PK-4
The Festo 13230 is an industrial flow control valve featuring PK-4 pneumatic connections on both ports and a manual actuation type utilizing a rotary knob with a scale. Constructed with a PA-reinforced housing and weighing 48 g, this component supports front panel mounting in any position and operates within a pressure range of 0 bar to 8 bar using compressed air conforming to ISO 8573-1:2010 [5:4:3] or inert gases. It delivers a standard nominal flow rate of 75.8 l/min in the flow control direction at an ambient and medium temperature range of -10 °C to 50 °C, while omitting oil lubrication compatibility and complying with RoHS and VDMA24364 Zone III LABS standards. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 13230
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 13230.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Flow control function
- Pneumatic connection 1
- PK-4
- Pneumatic connection 2
- PK-4
- Actuation type
- Manual
- Adjusting element
- Rotary knob with scale
- Type of mounting
- Front panel mounting
- Standard nominal ow rate in ow control direction
- 75.8 l/min
- Operating pressure
- 0 bar...8 bar
- Ambient temperature
- -10 °C...50 °C
- Housing material
- PA-reinforced
- Mounting position
- Any
- Operating pressure from 2 to 1
- 0 bar...0.5 bar
- Standard nominal ow rate in ow control direction from 1bar to 0 bar
- 38 l/min
- Standard ow rate in ow control direction 6 -> 0 bar
- 129 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [5:4:3] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication not possible
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Temperature of medium
- -10 °C...50 °C
- Product weight
- 48 g
- Note on materials
- RoHS compliant
- Seals material
- NBR | PVC
- Retainer bracket material
- Wrought aluminum alloy
- PK connections material
- Wrought aluminum alloy | Brass
- Official Festo technical specifications
- Valve function Flow control function Pneumatic connection 1 PK-4 Pneumatic connection 2 PK-4 Actuation type Manual Adjusting element Rotary knob with scale Type of mounting Front panel mounting Standard nominal ow rate in ow control direction 75.8 l/min Operating pressure 0 bar...8 bar Ambient temperature -10 °C...50 °C Housing material PA-reinforced Mounting position Any Operating pressure from 2 to 1 0 bar...0.5 bar Standard nominal ow rate in ow control direction from 1bar to 0 bar 38 l/min Standard ow rate in ow control direction 6 -> 0 bar 129 l/min Operating medium Compressed air as per ISO 8573-1:2010 [5:4:3] Inert gases Information on operating and pilot media Operation with oil lubrication not possible LABS (PWIS) conformity VDMA24364 Zone III Temperature of medium -10 °C...50 °C Product weight 48 g Note on materials RoHS compliant Seals material NBR PVC Retainer bracket material Wrought aluminum alloy PK connections material Wrought aluminum alloy Brass 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 13230. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
