Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

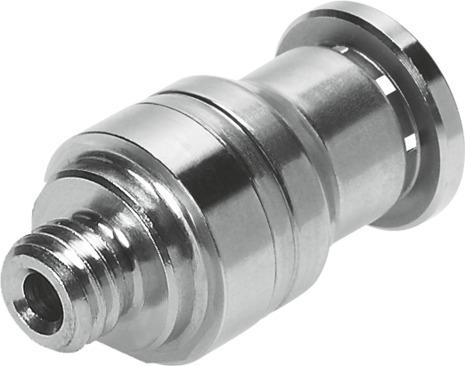

Reference imageConfirm configuration by manufacturer part number.
Festo
132328
Push-in fitting CRQS-M5-4-I
The Festo part number 132328 is a straight industrial component featuring a 2 mm nominal width, an 18 mm tubing insertion depth, and a push-pull structural design with a sealing ring on the screwed plug. This standard-sized unit weighs 5 g, operates within a pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar or -13.775 psi to 145 psi) across an ambient temperature range of -15 °C to 120 °C, and achieves a nominal tightening torque of 1.33 Nm with a ±20% tolerance. It handles compressed air conforming to ISO 8573-1:2010 [7:-:-] or liquid, ice-free water, provides a corrosion resistance class (CRC) of 4 for particularly high corrosion stress, and allows lubricated operation. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 132328
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 132328.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 2 mm
- Tubing insertion depth
- 18 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -15 °C...120 °C
- Nominal tightening torque
- 1.33 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 5 g
- Usable connector cables
- PFAN
- Type of mounting
- Internal hexagon, AF 2
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- Silver
- Material of screwed plug
- high-alloy stainless steel
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Official Festo technical specifications
- Size Standard Nominal width 2 mm Tubing insertion depth 18 mm Type of seal on screwed plug Sealing ring Mounting position Any Design Straight design Pack size 1 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...1 MPa -0.95 bar...10 bar -13.775 psi...145 psi Temperature-dependent operating pressure -0.095 MPa...1 MPa -0.95 bar...10 bar -13.775 psi...145 psi Information on operating pressure Water: max. 0.6 MPa at max. 50 °C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 4 - Particularly high corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L For use in the food industry See supplementary material information Ambient temperature -15 °C...120 °C Nominal tightening torque 1.33 Nm Tolerance for nominal tightening torque ±20% Product weight 5 g Usable connector cables PFAN Type of mounting Internal hexagon, AF 2 Pneumatic connection 1 External thread M5 Pneumatic connection 2 for pneumatic tubing outside diameter 4 mm Releasing ring color Silver Material of screwed plug high-alloy stainless steel Note on materials RoHS compliant Housing material high-alloy stainless steel 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 132328. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
