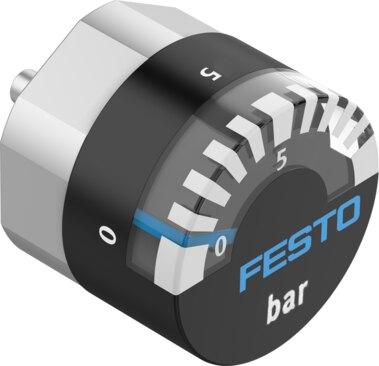

Reference imageConfirm configuration by manufacturer part number.
Festo
132340
Pressure gauge MA-15-10-M5
The Festo 132340 is an industrial component featuring a Bourdon tube pressure gauge without a measuring mechanism designed for in-line installation with a centered rear M5 pneumatic connection. It provides a display and operating pressure range of 0 bar to 10 bar (0 MPa to 1 MPa, 0 psi to 145 psi), a nominal size of 15, and measurement accuracy class 5 for neutral liquids and inert gases excluding acetylene and oxygen. Constructed with a steel housing, brass screwed plug, and polycarbonate inspection window, the unit operates in medium and ambient temperatures from -20 °C to 60 °C and achieves an IP53 degree of protection with RoHS and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 132340
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 132340.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...10 bar
- Pressure gauge nominal size
- 15
- Structural design
- Bourdon tube pressure gauge without measuring mechanism
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 5
- Degree of protection
- IP53
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- M5
- Material of screwed plug
- Brass
- Housing material
- Steel
- Inspection window material
- PC
- Housing colour
- Black
- Product weight
- 10 g
- Scale
- Single scale | bar (außen)
- Official Festo technical specifications
- Display range 0 bar...10 bar Pressure gauge nominal size 15 Structural design Bourdon tube pressure gauge without measuring mechanism Type of mounting In-line installation Operating medium Inert gases Neutral liquids Information on operating and pilot media No acetylene No oxygen Operating pressure 0 MPa...1 MPa 0 bar...10 bar 0 psi...145 psi Intermittent load factor 0.66 Measurement accuracy class 5 Degree of protection IP53 Temperature of medium -20 °C...60 °C Ambient temperature -20 °C...60 °C LABS (PWIS) conformity VDMA24364-B1/B2-L Note on materials RoHS compliant Connection position Centered on rear side Pneumatic connection M5 Material of screwed plug Brass Housing material Steel Inspection window material PC Housing colour Black Product weight 10 g Scale Single scale bar (außen) 6/5/26 –
