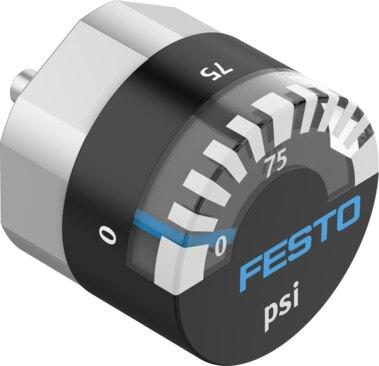

Reference imageConfirm configuration by manufacturer part number.
Festo
132341
Pressure gauge MA-15-145-M5-PSI
The Festo 132341 is a Bourdon tube pressure gauge featuring a 15 nominal size and a centered rear M5 pneumatic connection for in-line installation. It utilizes a steel housing with a black finish, a PC inspection window, and a brass screwed plug, delivering a display and operating pressure range of 0 psi to 145 psi (0 bar to 10 bar). Designed with a measurement accuracy class of 5, an IP53 degree of protection, and an intermittent load factor of 0.66, this RoHS-compliant component operates with inert gases and neutral liquids within a medium and ambient temperature range of -20 °C to 60 °C, excluding acetylene and oxygen. Please submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 132341
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 132341.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 psi...145 psi
- Pressure gauge nominal size
- 15
- Structural design
- Bourdon tube pressure gauge without measuring mechanism
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 5
- Degree of protection
- IP53
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- M5
- Material of screwed plug
- Brass
- Housing material
- Steel
- Inspection window material
- PC
- Housing colour
- Black
- Product weight
- 10 g
- Scale
- Single scale | psi (outer scale)
- Official Festo technical specifications
- Display range 0 psi...145 psi Pressure gauge nominal size 15 Structural design Bourdon tube pressure gauge without measuring mechanism Type of mounting In-line installation Operating medium Inert gases Neutral liquids Information on operating and pilot media No acetylene No oxygen Operating pressure 0 MPa...1 MPa 0 bar...10 bar 0 psi...145 psi Intermittent load factor 0.66 Measurement accuracy class 5 Degree of protection IP53 Temperature of medium -20 °C...60 °C Ambient temperature -20 °C...60 °C LABS (PWIS) conformity VDMA24364-B1/B2-L Note on materials RoHS compliant Connection position Centered on rear side Pneumatic connection M5 Material of screwed plug Brass Housing material Steel Inspection window material PC Housing colour Black Product weight 10 g Scale Single scale psi (outer scale) 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 132341. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
