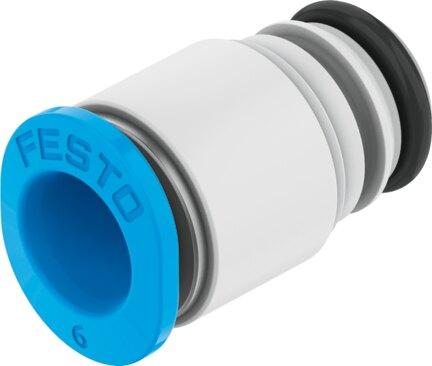

Reference imageConfirm configuration by manufacturer part number.
Festo
132623
Cartridge QSPKG10-6
The Festo 132623 is a mini straight industrial component featuring a push-pull structural design with a 3.7 mm nominal width, a 12.6 mm tubing insertion depth, and an O-ring seal on the screwed plug. It accommodates compressed air operating media according to ISO 8573-1:2010 [7:-:-] across an operating pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar or -13.775 psi to 145 psi) and temperatures from -5 °C to 60 °C. Weighing 1.8 g with a 1 - Low corrosion stress classification and RoHS compliance, this pack of 10 components includes a 10 mm cartridge connection 1, a connection 2 for 6 mm outside diameter pneumatic tubing, a blue releasing ring, and a mounting pin for any mounting position with lubricated operation possible. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 132623
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 132623.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 3.7 mm
- Tubing insertion depth
- 12.6 mm
- Type of seal on screwed plug
- O-ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 1.8 g
- Type of mounting
- Mounting pin
- Pneumatic connection 1
- Cartridge 10 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
- Official Festo technical specifications
- Size Mini Nominal width 3.7 mm Tubing insertion depth 12.6 mm Type of seal on screwed plug O-ring Mounting position Any Design Straight design Pack size 10 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...1 MPa -0.95 bar...10 bar -13.775 psi...145 psi Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature -5 °C...60 °C Product weight 1.8 g Type of mounting Mounting pin Pneumatic connection 1 Cartridge 10 mm Pneumatic connection 2 for pneumatic tubing outside diameter 6 mm Releasing ring color Blue Note on materials RoHS compliant Housing material PA-reinforced Releasing ring material POM Material of tubing seal NBR Material of tube retaining claw high-alloy stainless steel 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 132623. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
