Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

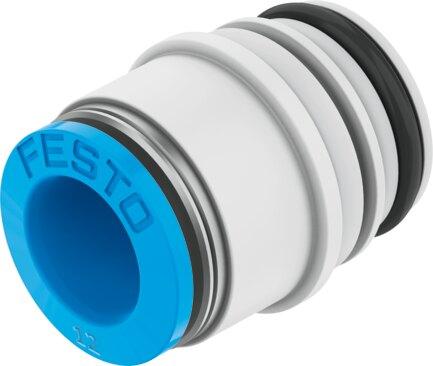

Reference imageConfirm configuration by manufacturer part number.
Festo
132635
Cartridge QSPKG20-12
This straight-design industrial component from Festo features an 8.3 mm nominal width, a 23.4 mm tubing insertion depth, and a push-pull structural design utilizing an O-ring seal on the screwed plug. Operating within a pressure range of -0.95 bar to 10 bar (-13.775 psi to 145 psi) and an ambient temperature range of -5 °C to 60 °C, the 13 g unit accommodates compressed air per ISO 8573-1:2010 [7:-:-] with lubricated operation possible. The hardware provides a 20 mm cartridge for pneumatic connection 1, a 12 mm outside diameter pneumatic tubing connection for pneumatic connection 2, a blue releasing ring, and a VDMA24364-B1/B2-L LABS conformity rating with a CRC of 1. Submit the exact part number 132635, quantity, and application requirements for a quote on this standard pack size of 10.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 132635
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 132635.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 8.3 mm
- Tubing insertion depth
- 23.4 mm
- Type of seal on screwed plug
- O-ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 13 g
- Type of mounting
- Mounting pin
- Pneumatic connection 1
- Cartridge 20 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
- Official Festo technical specifications
- Size Standard Nominal width 8.3 mm Tubing insertion depth 23.4 mm Type of seal on screwed plug O-ring Mounting position Any Design Straight design Pack size 10 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...1 MPa -0.95 bar...10 bar -13.775 psi...145 psi Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature -5 °C...60 °C Product weight 13 g Type of mounting Mounting pin Pneumatic connection 1 Cartridge 20 mm Pneumatic connection 2 for pneumatic tubing outside diameter 12 mm Releasing ring color Blue Note on materials RoHS compliant Housing material PA-reinforced Releasing ring material POM Material of tubing seal NBR Material of tube retaining claw high-alloy stainless steel 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 132635. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
