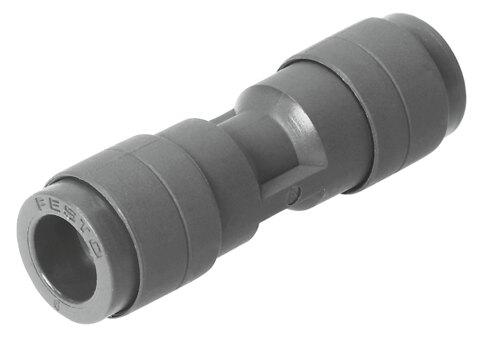

Reference imageConfirm configuration by manufacturer part number.
Festo
132890
Push-in connector QS-V0-4
The Festo 132890 is a standard straight industrial component utilizing a push-pull structural design with a 2.8 mm nominal width for 4 mm outside diameter pneumatic tubing connections. Featuring a PBT housing and NBR tubing seal with UL94 V-0 ratings for both the housing and releasing ring, this RoHS-compliant part supports compressed air and ice-free liquid water operating media across a pressure range of -0.95 bar to 10 bar. It weighs 6.1 g, offers CRC 2 moderate corrosion stress resistance, and operates within an ambient temperature range of 0 °C to 60 °C with lubricated operation capability. Submit the exact part number, quantity, and application requirements for an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 132890
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 132890.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 2.8 mm
- Material re test
- UL94 V-0 (housing) | UL94 V-0 (releasing ring)
- Design
- Straight design
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 6.1 g
- Pneumatic connection 1
- for pneumatic tubing outside diameter 4 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- Black
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel | Brass
- Official Festo technical specifications
- Size Standard Nominal width 2.8 mm Material re test UL94 V-0 (housing) UL94 V-0 (releasing ring) Design Straight design Pack size 1 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...1 MPa -0.95 bar...10 bar -13.775 psi...145 psi Information on operating pressure Water: max. 0.6 MPa at max. 50 °C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature 0 °C...60 °C Product weight 6.1 g Pneumatic connection 1 for pneumatic tubing outside diameter 4 mm Pneumatic connection 2 for pneumatic tubing outside diameter 4 mm Releasing ring color Black Note on materials RoHS compliant Housing material PBT Material of tubing seal NBR Material of tube retaining claw high-alloy stainless steel Brass 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 132890. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
