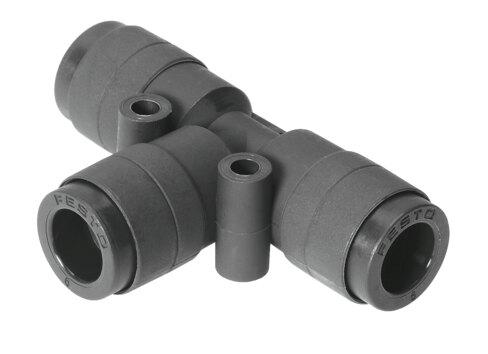

Reference imageConfirm configuration by manufacturer part number.
Festo
132896
Push-in T-connector QST-V0-4
The Festo part number 132896 is a standard T-shaped industrial component utilizing a push-pull structural design for 4 mm outside diameter pneumatic tubing connections. Constructed with a PBT housing and releasing ring featuring UL94 V-0 fire testing compliance, this unit operates across pressures from -0.95 bar to 10 bar with compressed air or water media. It weighs 9.6 g, offers a CRC 2 moderate corrosion resistance class, and functions within an ambient temperature range of 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 132896
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 132896.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 2.8 mm
- Material re test
- UL94 V-0 (housing) | UL94 V-0 (releasing ring)
- Design
- T-shape
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at max. 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 9.6 g
- Pneumatic connection 1
- for pneumatic tubing outside diameter 4 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- Black
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- PBT
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel | Brass
- Official Festo technical specifications
- Size Standard Nominal width 2.8 mm Material re test UL94 V-0 (housing) UL94 V-0 (releasing ring) Design T-shape Pack size 1 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...1 MPa -0.95 bar...10 bar -13.775 psi...145 psi Information on operating pressure Water: max. 0.6 MPa at max. 50 °C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature 0 °C...60 °C Product weight 9.6 g Pneumatic connection 1 for pneumatic tubing outside diameter 4 mm Pneumatic connection 2 for pneumatic tubing outside diameter 4 mm Releasing ring color Black Note on materials RoHS compliant Housing material PBT Releasing ring material PBT Material of tubing seal NBR Material of tube retaining claw high-alloy stainless steel Brass 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 132896. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
