13291

Name: Festo 13291 Clamping module EV-20/75-5
Brand: Festo

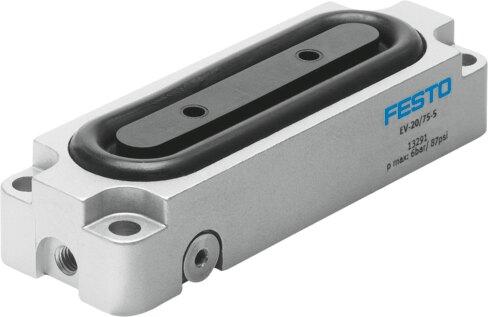

Clamping module EV-20/75-5

This Festo industrial component, part number 13291, is a single-acting pneumatic part featuring a 5 mm stroke and a 20x75 clamping area. Constructed with a die-cast aluminum housing and a TPE-U(PU) diaphragm, it operates between 0.2 MPa and 0.6 MPa (2 bar to 6 bar, or 29 psi to 87 psi) using compressed air meeting ISO 8573-1:2010 [7:-:-]. The unit weighs 130 g, supports any mounting position via through-hole installation, utilizes an M5 pneumatic connection, and complies with VDMA24364-B1/B2-L LABS conformity while excluding metals with more than 5% copper by mass for Li-ion battery production suitability. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 13291
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 13291.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 5 mm
Clamping area: 20x75
Mounting position: Any
Mode of operation: Single-acting
Operating pressure: 0.2 MPa...0.6 MPa | 2 bar...6 bar | 29 psi...87 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries: Metals with more than 5% by mass of copper are excluded from use. | This excludes printed circuit boards, cables, electrical connectors and | coils.
Ambient temperature: -20 °C...40 °C
Product weight: 130 g
Type of mounting: With through-hole
Pneumatic connection: M5
Housing material: Die-cast aluminum
Diaphragm material: TPE-U(PU)
Official Festo technical specifications: Stroke 5 mm Clamping area 20x75 Mounting position Any Mode of operation Single-acting Operating pressure 0.2 MPa...0.6 MPa 2 bar...6 bar 29 psi...87 psi Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] LABS (PWIS) conformity VDMA24364-B1/B2-L Suitability for the production of Li-ion batteries Metals with more than 5% by mass of copper are excluded from use. This excludes printed circuit boards, cables, electrical connectors and coils. Ambient temperature -20 °C...40 °C Product weight 130 g Type of mounting With through-hole Pneumatic connection M5 Housing material Die-cast aluminum Diaphragm material TPE-U(PU) 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 13291. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
