Festo
1329132

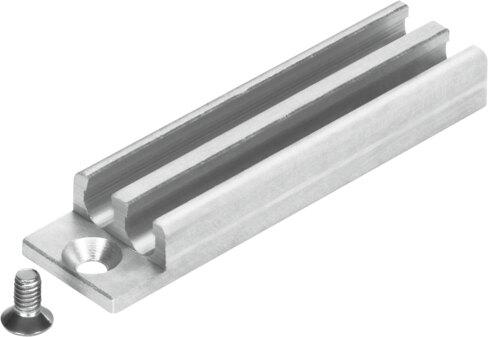

Sensor rail DASP-G3-27-C-D
The Festo 1329132 is a size 27 sensor rail featuring an anodized wrought aluminum alloy profile and high-alloy stainless steel screws. This component supports any mounting position, screws directly onto a pneumatic gripper, and has a product weight of 4 g with RoHS compliance. It operates within an ambient temperature range of 5 °C to 60 °C while achieving corrosion resistance class 2 for moderate corrosion stress and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1329132
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1329132.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 27
- Mounting position
- Any
- Structural design
- Sensor rail
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 4 g
- Type of mounting
- Screwed on to pneumatic gripper
- Note on materials
- RoHS compliant
- Prole material
- Wrought aluminum alloy, anodized
- Material of screws
- high-alloy stainless steel
- Official Festo technical specifications
- Size 27 Mounting position Any Structural design Sensor rail Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364 Zone III Ambient temperature 5 °C...60 °C Product weight 4 g Type of mounting Screwed on to pneumatic gripper Note on materials RoHS compliant Prole material Wrought aluminum alloy, anodized Material of screws high-alloy stainless steel 6/5/26 –
