Festo
132918

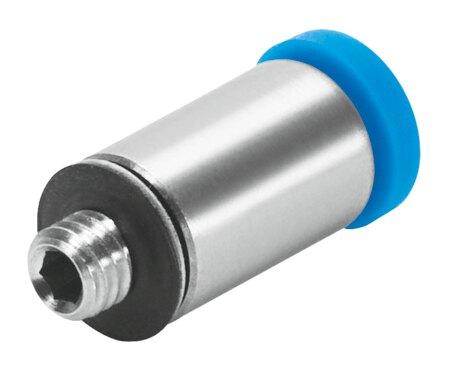

Push-in fitting QSM-M5-6-I-R-100
The Festo part number 132918 is a mini straight industrial component featuring a 2.6 mm nominal width, an M5 external thread pneumatic connection 1, and a round releasing ring utilizing the push-pull principle with a 12 mm tubing insertion depth. Operating with compressed air as per ISO 8573-1:2010 [7:-:-] across an ambient temperature range of -10 °C to 80 °C, this unit handles pressures from -0.095 MPa to 0.6 MPa over its full temperature range and up to 1.4 MPa under temperature-dependent conditions. Each 4.4 g component includes a sealing ring on the screwed plug, features VDMA24364-B1/B2-L LABS conformity with a CRC 1 corrosion resistance class, and mounts via an internal hex AF2.5 at a nominal tightening torque of 1.2 Nm with a ±20% tolerance in any mounting position. Submit the exact part number, quantity, and application requirements for a quote on this pack size of 100.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 132918
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 132918.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 2.6 mm
- Tubing insertion depth
- 12 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design, round releasing ring
- Pack size
- 100
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Nominal tightening torque
- 1.2 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 4.4 g
- Type of mounting
- Internal hex AF2.5
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
- Official Festo technical specifications
- Size Mini Nominal width 2.6 mm Tubing insertion depth 12 mm Type of seal on screwed plug Sealing ring Mounting position Any Design Straight design, round releasing ring Pack size 100 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...0.6 MPa -0.95 bar...6 bar -13.775 psi...87 psi Temperature-dependent operating pressure -0.095 MPa...1.4 MPa -0.95 bar...14 bar -13.775 psi...203 psi Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature -10 °C...80 °C Nominal tightening torque 1.2 Nm Tolerance for nominal tightening torque ±20% Product weight 4.4 g Type of mounting Internal hex AF2.5 Pneumatic connection 1 External thread M5 Pneumatic connection 2 for pneumatic tubing outside diameter 6 mm Releasing ring color Blue Note on materials RoHS compliant Housing material Brass, nickel-plated Releasing ring material POM Material of tubing seal NBR Material of tube retaining claw high-alloy stainless steel 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 132918. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
