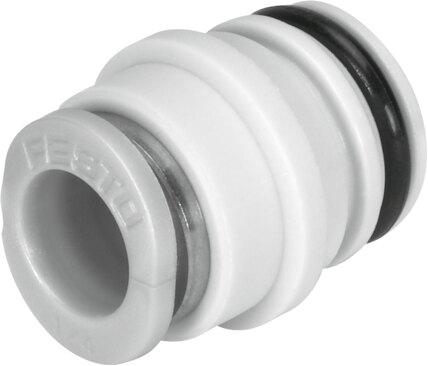

Reference imageConfirm configuration by manufacturer part number.
Festo
132932
Cartridge QSPKG14-1/4-U
The Festo 132932 is a mini industrial component featuring a straight design with a 3.9 mm nominal width and a push-pull structural design. This pack of 10 components weighs 2.3 g each, utilizes a mounting pin type of mounting, and operates across an ambient temperature range of -5 °C to 60 °C (-13.775 psi to 145 psi operating pressure). It connects a 14 mm cartridge to a 1/4" outer diameter pneumatic tubing and supports compressed air media in accordance with ISO 8573-1:2010 [7:-:-]. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 132932
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 132932.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 3.9 mm
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Maritime classication
- See certicate
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 2.3 g
- Type of mounting
- Mounting pin
- Pneumatic connection 1
- Cartridge 14 mm
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Ambient temperature Fahrenheit
- 23 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
- Official Festo technical specifications
- Size Mini Nominal width 3.9 mm Mounting position Any Design Straight design Pack size 10 Structural design Push-pull principle Operating pressure for entire temperature range -0.095 MPa...1 MPa -0.95 bar...10 bar -13.775 psi...145 psi Maritime classication See certicate Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Lubricated operation possible Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature -5 °C...60 °C Product weight 2.3 g Type of mounting Mounting pin Pneumatic connection 1 Cartridge 14 mm Pneumatic connection 2 for pneumatic tubing outer diameter 1/4" Ambient temperature Fahrenheit 23 °F...140 °F Releasing ring color Gray Note on materials RoHS compliant Housing material PA-reinforced Releasing ring material POM Material of tubing seal NBR Material of tube retaining claw high-alloy stainless steel 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 132932. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
