Festo
132980

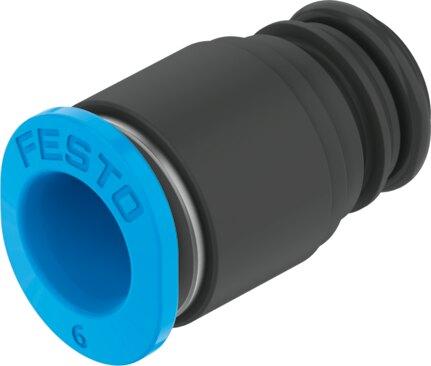

Cartridge QSPK10-6
This Festo industrial component, part number 132980, features a mini straight design with a 3.7 mm nominal width and an 11.9 mm tubing insertion depth utilizing the push-pull principle. The unit includes a cartridge 10 mm pneumatic connection 1 and a pneumatic connection 2 for a 6 mm outside diameter tubing, operating at pressures from -0.095 MPa to 1 MPa using compressed air according to ISO 8573-1:2010 [7:-:-] within a temperature range of -5 °C to 60 °C. Each pack contains 10 RoHS compliant units weighing 1.8 g each, equipped with an O-ring seal on the screwed plug, a mounting pin, a blue releasing ring, and a corrosion resistance class of 1. Submit part number 132980, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 132980
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 132980.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 3.7 mm
- Tubing insertion depth
- 11.9 mm
- Type of seal on screwed plug
- O-ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 1.8 g
- Type of mounting
- Mounting pin
- Pneumatic connection 1
- Cartridge 10 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 132980. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
