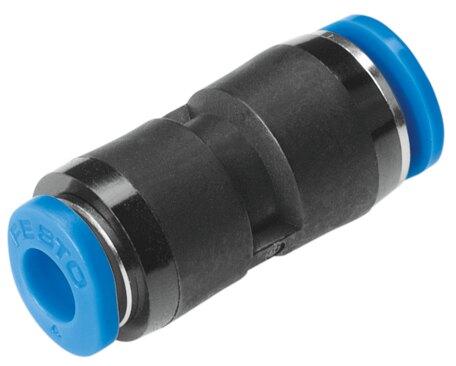

Reference imageConfirm configuration by manufacturer part number.
Festo
133029
Push-in connector QSM-3-2
The Festo 133029 is a mini straight industrial component featuring a push-pull structural design for 3 mm and 2 mm outside diameter pneumatic tubing, complete with a blue releasing ring and a sealing ring on the screwed plug. Operating on compressed air per ISO 8573-1:2010 [7:-:-], this 1 g unit handles temperatures from -10 °C to 80 °C and features an operating pressure range of -0.95 bar to 6 bar across all temperatures, extending up to 14 bar in temperature-dependent conditions. It offers a nominal width of 1.1 mm, tubing insertion depths of 8.4 mm for Ø2 and 9.3 mm for Ø3, a corrosion resistance class of 1, and VDMA24364-B1/B2-L LABS conformity with support for lubricated operation in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this pack size of 10.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 133029
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 133029.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 1.1 mm
- Tubing insertion depth
- 8.4 mm | 9.3 mm
- Note on the tubing insertion depth
- Ø2 depth 8.4 mm | Ø3 depth 9.3 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 1 g
- Pneumatic connection 1
- for pneumatic tubing outside diameter 3 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 2 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 133029. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
