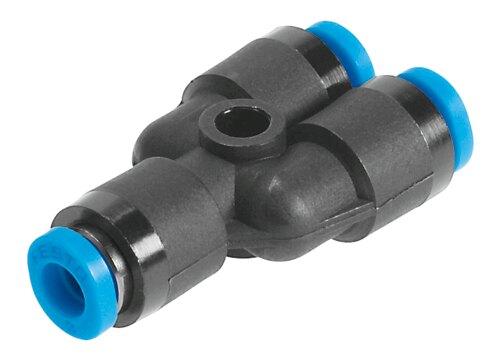

Reference imageConfirm configuration by manufacturer part number.
Festo
133037
Push-in Y-connector QSMY-2
The Festo part number 133037 is a mini Y-shaped industrial component featuring a 0.9 mm nominal width, an 8.4 mm tubing insertion depth, and a push-pull structural design for 2 mm outside diameter pneumatic tubing connections. This RoHS-compliant unit utilizes a sealing ring on the screwed plug, operates within an ambient temperature range of -10 °C to 80 °C, and weighs 1.7 g with a low corrosion resistance class of 1. It accommodates compressed air per ISO 8573-1:2010 [7:-:-] with lubricated operation possible, delivering an operating pressure of -0.095 MPa to 0.6 MPa across the entire temperature range and -0.095 MPa to 1.4 MPa depending on temperature. Please submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 133037
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 133037.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Mini
- Nominal width
- 0.9 mm
- Tubing insertion depth
- 8.4 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Y-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...80 °C
- Product weight
- 1.7 g
- Pneumatic connection 1
- for pneumatic tubing outside diameter 2 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 2 mm
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 133037. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
